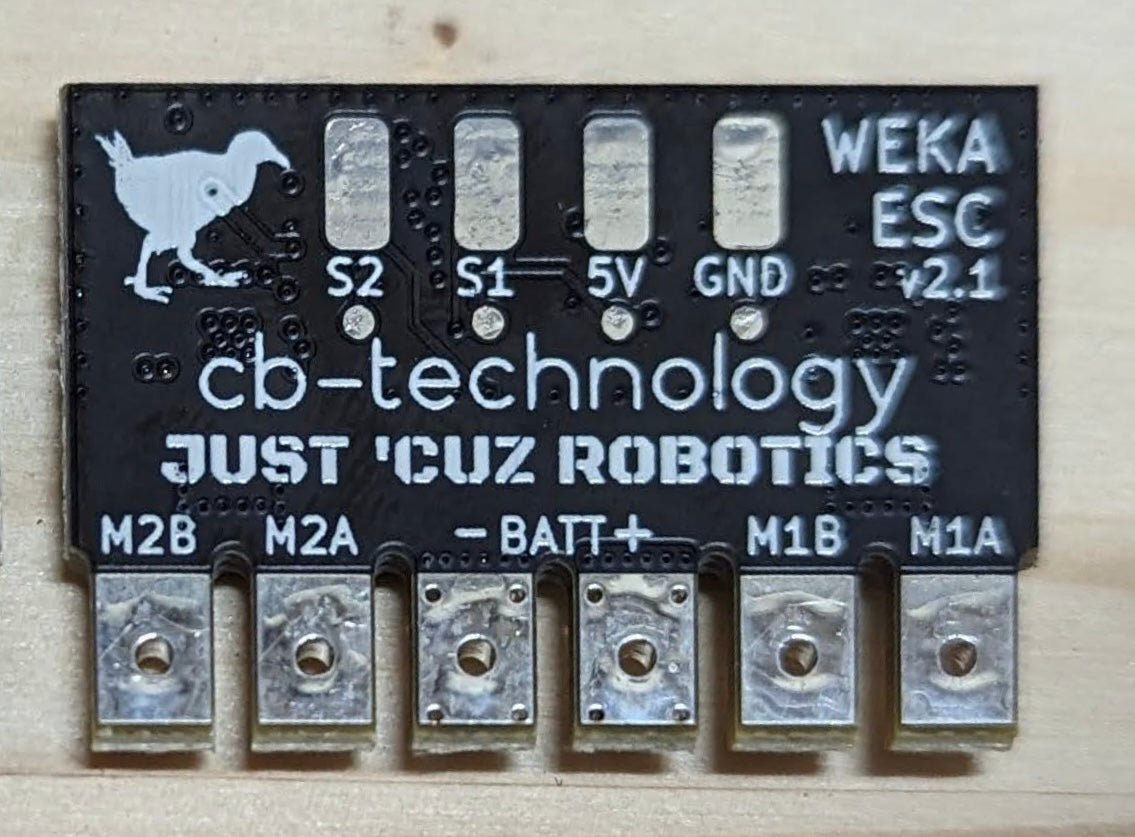

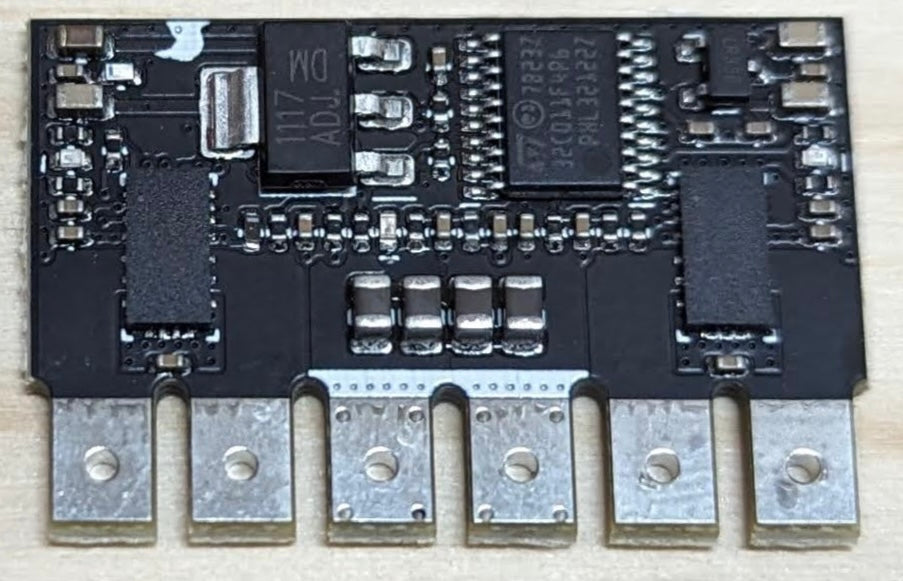

Weka 20A v2.1

WEKA is a compact dual DC-motor ESC: originally designed for combat robots, but is suitable for any application requiring a lightweight durable motor driver.

Developed in Christchurch, New Zealand by Connor Benton and tested in Nashua, USA by Seth Schafer.

• 2x Bi-Directional DC-motor outputs
• Status LED's to indicate run, fault and calibration modes
• Under-voltage, over-current, and over-temperature protection
• Internal BEC to provide power to the radio reciever
• Failsafe checks for loss of connection with radio
• Calibrate function to customise drive mode, channel mapping, and channel inversion
• Includes a 100nF capacitor across each motor to filter noise and voltage spikes

• Dimensions: 30x20x4 mm
• Weight: 3g excluding wires
• Input Voltage - Min: 6V
• Input Voltage - Max: 6S LiHv (26.1V)
• Motor Output: 20A per channel
• BEC: 5V, 1A. Designed to power the radio reciever but no motors or servos
• Signal Input: Servo PWM

For more information, usage instructions, or help with calibrating, please see the official repo at:

https://github.com/cb-repo/P027-WEKA-20A
