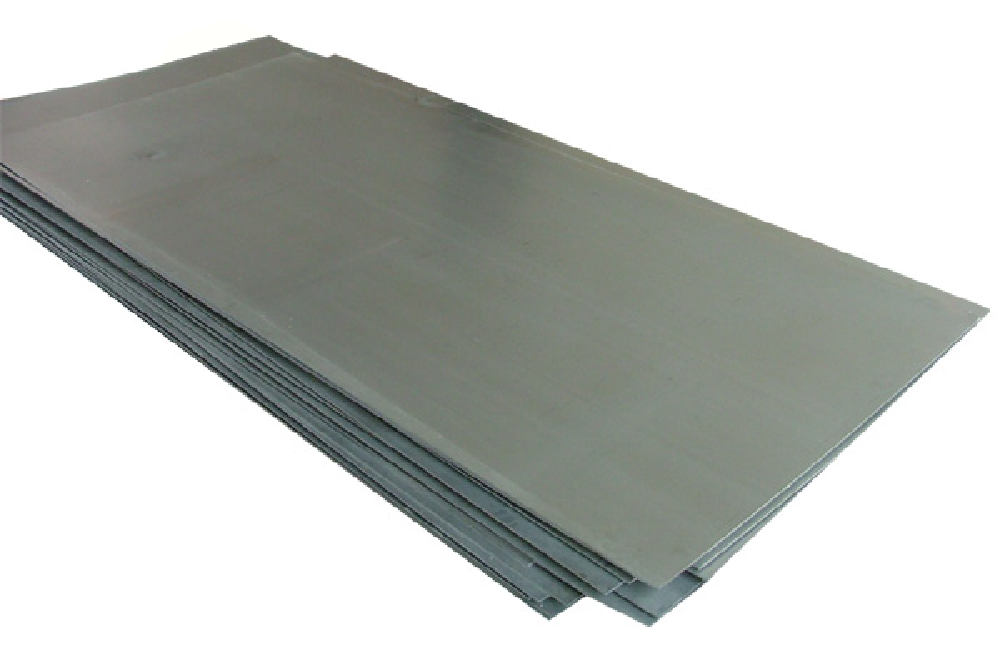

Titanium Sheets - Grade 5 (6AL-4V)

Titanium Sheets - Grade 5 (6AL-4V)

Regular price $45.00 NZD
Regular price Sale price $45.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
Thickness
NOTIFY ME WHEN IN STOCK

Currently imported from FingerTech, this stuff can't be beat for armor and even weapons. Currently we're only carrying the 0.5mm 1mm and 2mm sheets, but we are seeking a more affordable option to import very soon, which may allow us to carry a slightly better assortment, and bring the price down.

Tips
- Use 0.5mm for wrapping around wheels and making springy, shock-absorbing armor.
- Use the medium sizes for rigid panels and wedges.
- 2mm makes nearly impenetrable armor. and 3mm and up can even make decent weapon bars.
- Thin sizes can be cut with aviation snips and metal shears, thicker sizes with rotary tools (dremel discs, angle grinder zip discs, metal-cutting chop saw), and bandsaws (using metal-cutting blade).
- Can be bent by hand tools or a brake (thicker sizes should be cautiously heated to glowing orange with a propane torch to prevent cracking). Larger radius bends work better!
- Use cutting fluid when drilling, with slow RPM and high pressure. Titanium will work-harden if you let the tool rub on the metal.

Specifications
Grade: Gr5 (6AL-4V) ASTM B265
Sheet Size (not incl 5mm): 20.32x25.4cm (8x10in)
5mm Sheet Sizes: 30.5cm (12in) length with widths of 30.5cm (12in), 20.3cm (8in), and 10.2cm (4in)
Sizes are ±4mm, thicknesses ±0.15mm, and sheets may not be perfectly flat or unmarked.
Density: 4.43g/cm3 (2.56oz/in3)
Thickness and Weight:
- 0.5mm (0.02in): 137g (4.83 oz) *Note: This batch is averaging 0.5mm-0.6mm thick*
- 1.0mm (0.04in): 229g (8.07 oz) *Note: This batch is averaging 1.05mm-1.10mm thick*
- 2.0mm (0.08in): 458g (16.16oz)
Tensile Strength: 9687kgf/cm2 (138kpsi)
