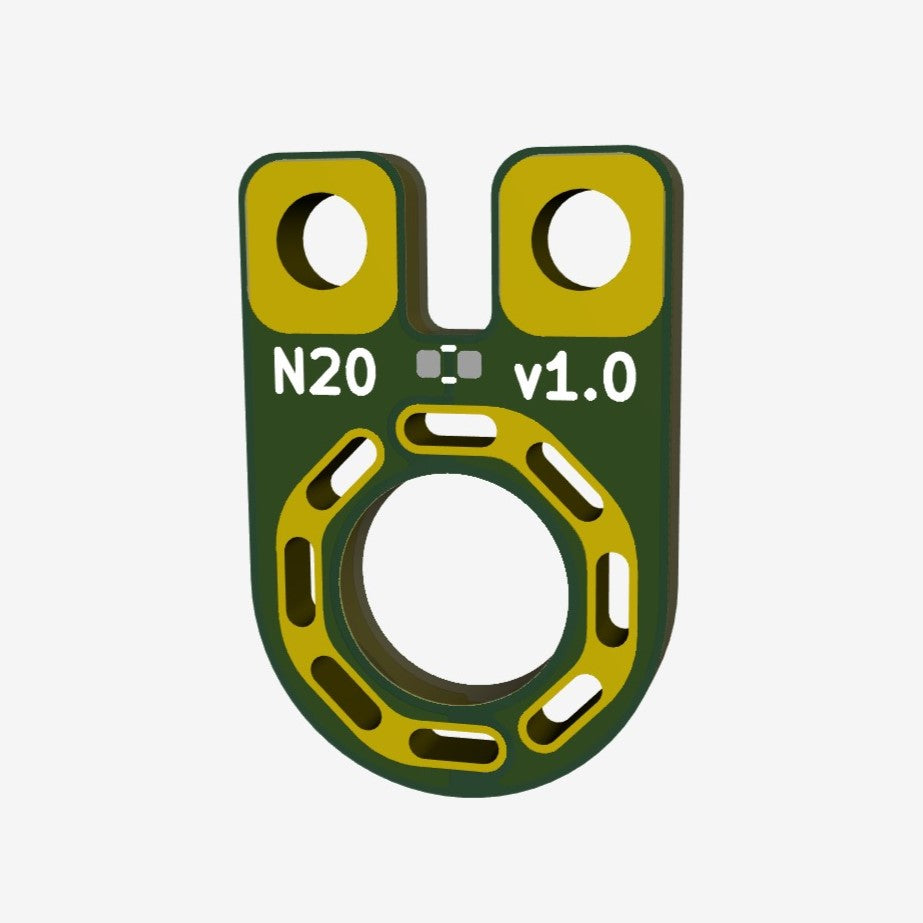

N20 Motor Terminal Breakout V1.0 (2 pack)
N20 Motor Terminal Breakout V1.0 (2 pack)
Regular price
$5.00 NZD
Regular price
Sale price
$5.00 NZD
Unit price
/
per
NOTIFY ME WHEN IN STOCK
Motor terminals are traditionally small and flimsy, making it hard to guarantee a reliable solder connection. MOTOR TERMINAL BREAKOUTS are designed to simplify and strengthen these solder joints, enabling more reliable operation especally in high vibration environments: orignially designed for combat robotics but is suitable for any application using these motors.
This is a New Zealand based product by cb-technology, Connor Benton.
FEATURES
- Fits all N-series (N10 / N20 / N30) motors.
- Mounts to the motor at 0°, 45°, 90°, and 135° angles.
- Large pads with holes to enable stronger connections to the wires.
- Pads are broken out onto PCB fingers allowing the wires to be heatshrunk post soldering (providing even greater mechanical strength).
- 100nF capacitor across the motor output to filter noise and voltage spikes.
SPECIFICATIONS
- Dimensions: 10x15x1 mm
- Weight: 1g each
- Material: Fiberglass (FR4)
- Mounting Pad Center: 7.5mm
- Included in Package: 2x Motor Terminal Breakouts
