Jumper RC

Jumper R1 V2 Mini D16 SBUS Receiver

Jumper R1 V2 Mini D16 SBUS Receiver

Regular price $30.00 NZD
Regular price Sale price $30.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.

These little mini-receivers from Jumper RC are a perfect pair to the Jumper T-Pro transmitter. They operate on the FrSky D16 protocol, and are compatible with other FrSky gear.

Note: These receivers are SBus mode, meaning they don't have separate PWM pins for your motors/etc. You need to either use some kind of "brain" (Flight Controller from a drone, or other RC device, or some kind of micro-controller), or you can use an SBus Decoder (we will likely be stocking these soon), or any ESC/Motor which supports SBus protocol (such as BLHeli32).

Using SBus you can use a single wire, and feed multiple devices, each of which have their own address to specify which channel they are on (supporting up to 16 devices!)

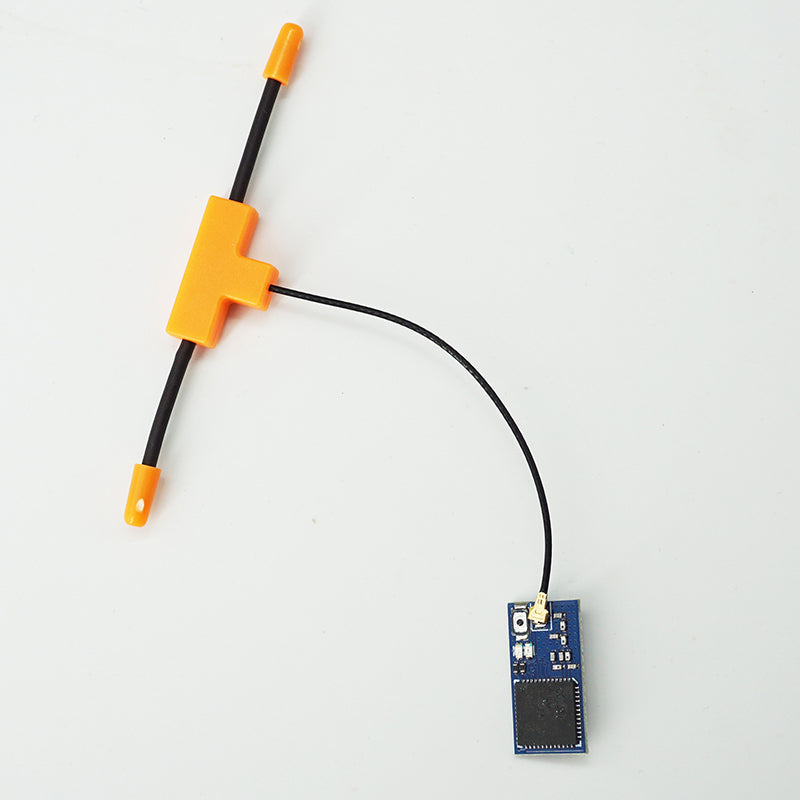

These Receivers have a T shaped antenna with a protective cover, which can be removed in Bot use to save space. We'll also be stocking replacement basic wire antennas which are much lighter. Tutorials incoming on modifying the antenna for weight reduction.

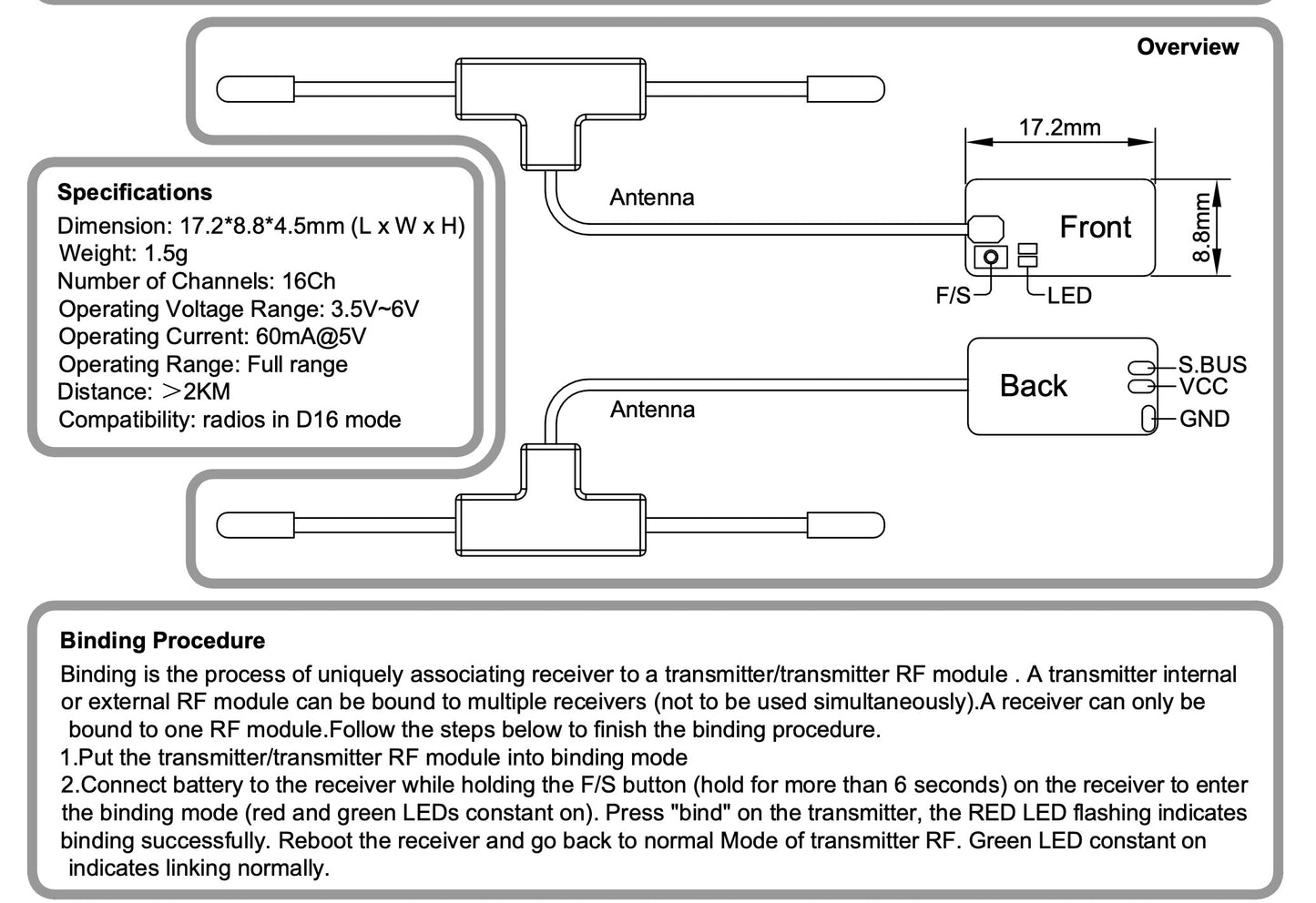

Product Details & Specs:

Dimensions  17.2 x 8.8 x 4.5mm (LxWxH)
Weight 1.5g
Number of Channels 16
Voltage Range 3.5V - 6V
Radio Protocol FrSky D16
Operating Range Full Range (>2km)
