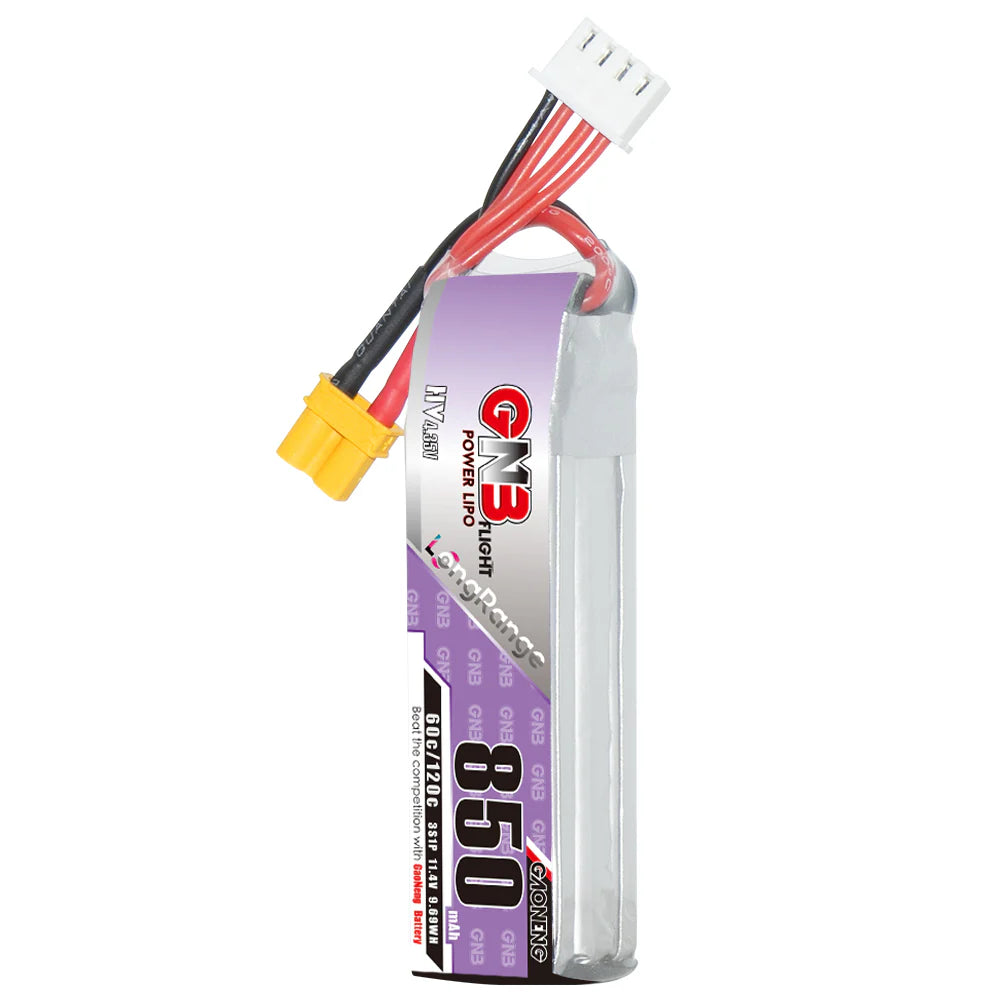

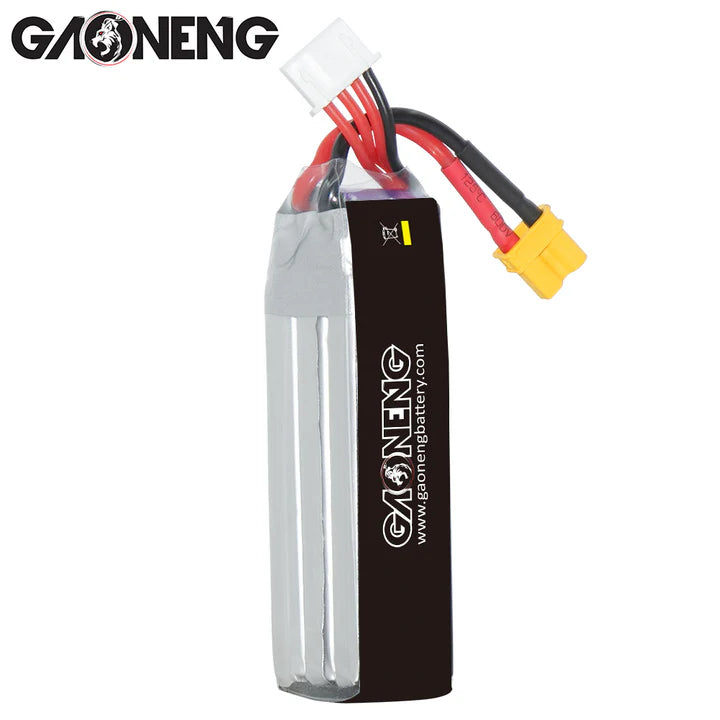

GNB 3S 11.4V 850mAh LiHV Battery 60C (Compact)
GNB 3S 11.4V 850mAh LiHV Battery 60C (Compact)
This high quality, low internal resistance and high discharge rate battery pack from GNB is perfect for the high demand that competitive beetleweights put on our batteries.
These packs have a lower max discharge rate than our standard 120C LiHV Packs, but are far more compact. These use the same battery chemistry as our Antweight 2S Packs. The 60C Continuous, and 120C Burst discharge rate means these batteries can handle 50A Continuous, and 100A Burst, so if your bot doesn't draw as much peak current, you might be able to save some weight by using these.
To ensure we differentiate these, they ship with an XT30 connector instead of our standard XT60. If you want to swap the ends we of course sell XT60 pairs you can use.
These would also be quite useful in Drones, due to their weight savings and compact size.
These are also offered at a lower price than our standard high discharge cells!
Note these are also LiHV packs, meaning the battery chemistry is improved for a slightly higher voltage rate per cell, as a result the voltage of the pack is slightly higher, resulting in a slightly higher motor output as well.
If your charger is capable of HV charging, it will have a separate mode (or you can set the cut off voltage manually). If your charger does not support them, you can still use a conventional LiPo charger, and it will only charge the battery to normal LiPo voltage, resulting in slightly reduced capacity, but longer life and less strain on the battery.
Specs:
Capacity |
850mAh |
Configuration |
3S1P |
Nominal Voltage |
11.4V |

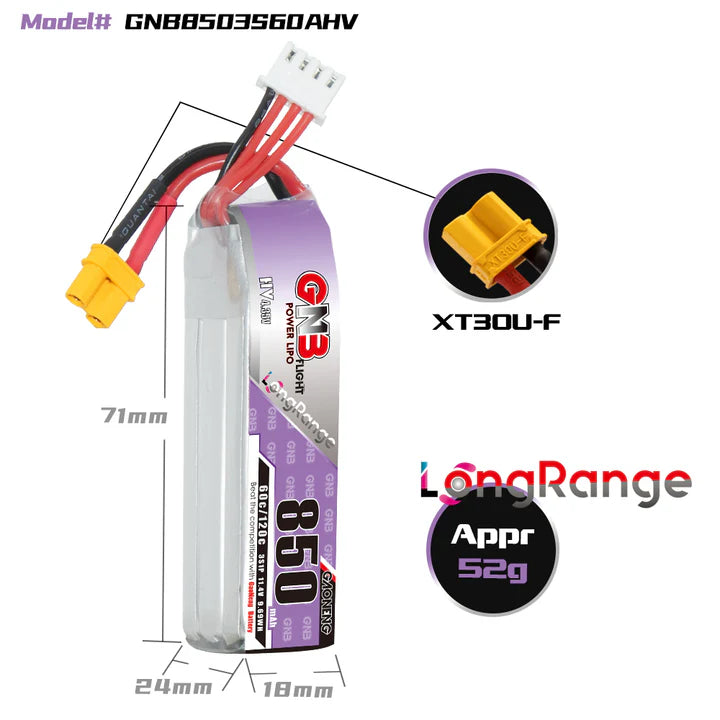

Dimension |
18*23*72mm (H*W*L) Appr. |
Weight |
52g (+/-2g) |
Max cont. discharge (C-rate/current) |
60C / 51A |
Max Burst (3Sec) (C-rate/current) |
120C / 102A |
Charge Connector |
JST-XH 4P |
Discharge Connector |
XT30 |
Working Temperature Charge |
0~45°C |
Working Temperature Discharge |
(-20~60°C) |
Working Humidity |
65%RH +/-20% |
Storage Temperature |
(-20~35°C) |
Storage Humidity |
65%RH +/-20% |
Rated Cycle Life |
300+ |
