GNB 2S 7.6V 300mAh LiHV Battery 60C
GNB 2S 7.6V 300mAh LiHV Battery 60C
Couldn't load pickup availability
The Ultimate Antweight Battery!
This battery was custom designed for us for use in Antweight combat robots. Using top quality low internal resistance cells with LiHV chemistry, we were able to get a slimline ultra high energy density battery that is as light as a Fingertech 180mah antweight battery, but has 300mAh of capacity, with a 60C/120C discharge rate, and because of the LiHV, it's got a higher peak voltage, meaning a little more oomph out of those drive and weapon motors!
If your charger is capable of HV charging, it will have a separate mode (or you can set the cut off voltage manually). If your charger does not support them, you can still use a conventional LiPo charger, and it will only charge the battery to normal LiPo voltage, resulting in slightly reduced capacity, but longer life and less strain on the battery.

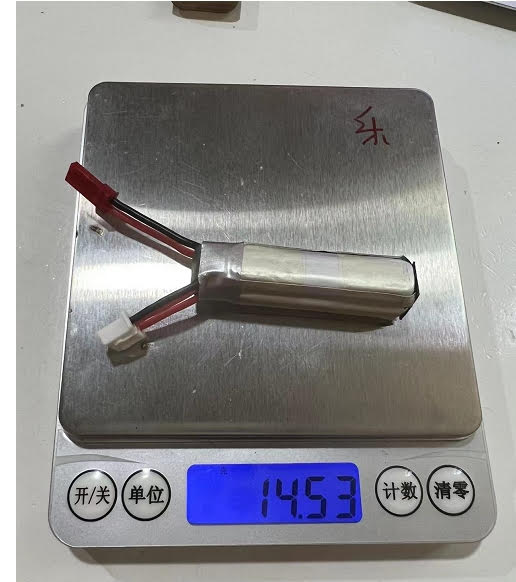

Note the photo shown on the scale is the prototype battery from the factory, which shows the weight they have achieved with this battery.
Specs:
Capacity |
300mAh |
Configuration |
2S1P |
Nominal Voltage |
7.6V |

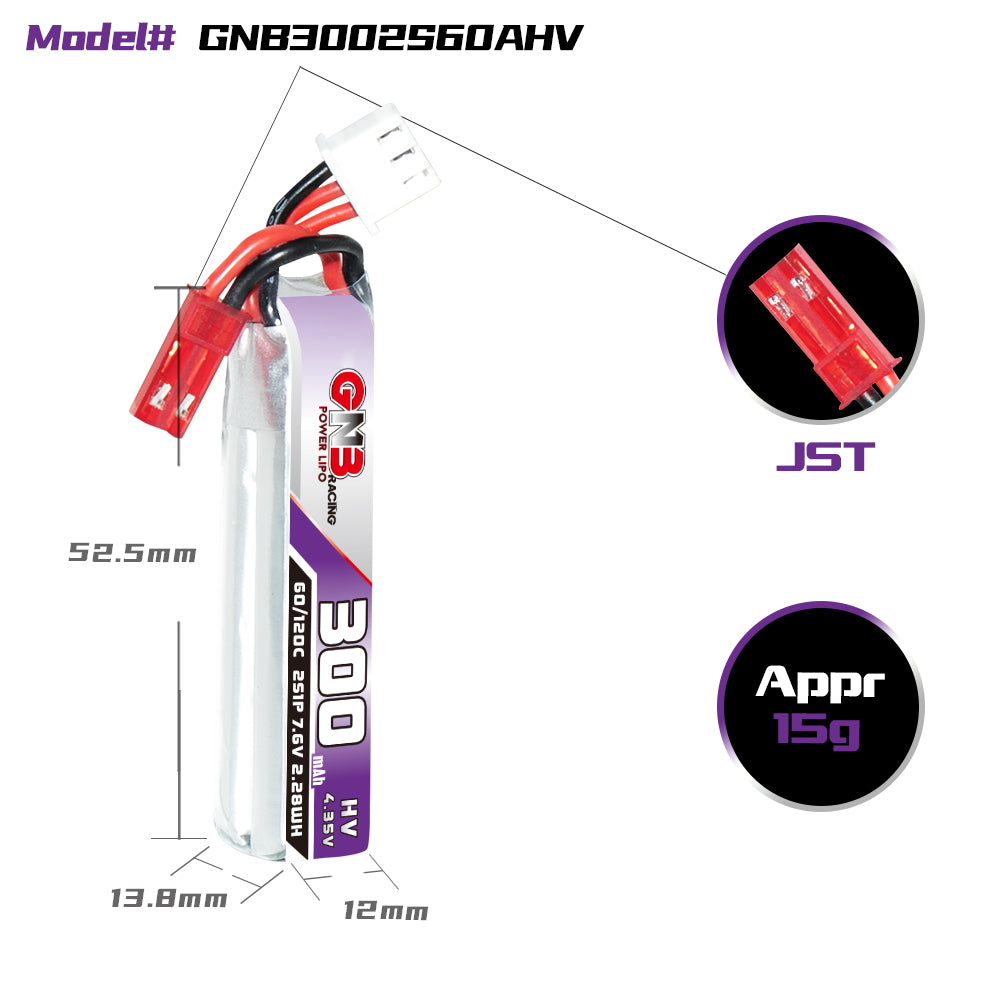

Dimension |
13.5*12*52.8 (H*W*L) Appr. |
Weight |
15g (+/-1g) |
Max cont. discharge (C-rate/current) |
60C / 18A |
Max Burst (3Sec) (C-rate/current) |
120C / 36A |
Charge Connector |
JST-XH 3P |
Discharge Connector |
Standard Red JST |
Working Temperature Charge |
0~45°C |
Working Temperature Discharge |
(-20~60°C) |
Working Humidity |
65%RH +/-20% |
Storage Temperature |
(-20~35°C) |
Storage Humidity |
65%RH +/-20% |
Rated Cycle Life |
300+ |
