Combat Robotics NZ

FS2A 4CH AFHDS 2A Mini Receiver

FS2A 4CH AFHDS 2A Mini Receiver

Regular price $25.00 NZD
Regular price Sale price $25.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

Compatibility with new Jumper T-Pro Transmitter

This receiver is fully compatible with the new Jumper T-Pro transmitter we carry, and what's more? With our stock configurations, you'll be able to make full use of all 4 channels! 2 Channels for Drive, and 2 more for other functions (ie: weapons/servos/etc)

These are great low cost, lightweight receivers for use with standard PWM controlled gear.

If you have some of these already, you can keep using them, and be confident that the newer transmitter will support them fine.

As a result of their great utility, and great price, we will continue to stock these receivers well into the future, so they will always be on-hand.

NOTE: The latest shipment of these may experience problems with binding to any Multi-Protocol-Module based receiver like the T-Pro, or most other OpenTX or EdgeTX Radios. This is because the manufacturer made a change to one of the chips, and their firmware has a bug affecting the control of the LNA (Low Noise Amplifier) circuit for the rx to transmit telemetry back.

We have worked with the MPM developer to develop a solution for this, as a firmware patch to the MPM in the radio.

Please see this page for more detail if you are experiencing this problem

Notes for Compatibility of Flysky i6 i6X i6S Transmitter

Use this transmitter as great way to save weight in your bot.
However note that as its only 4 channels so you cant assign channel 5,6 to switches or dials for use as weapon controls without mixing / slaving.

Here is a great review of these receivers:

Description:

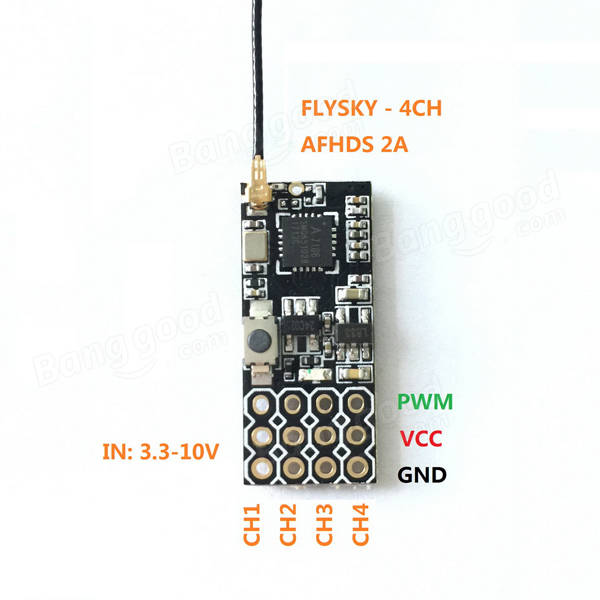

Item name: Flysky FS2A 4CH Receiver
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10V
Distance: 400+ meters
Working current: 20MA
Dimensions: 11 * 25MM
Weight: 0.9 grams (+-1.8g with pins soldered)
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Bind:
1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes  quickly several times and then always bright , failsafe settings is successful.

Pacakge Included:
1X FS2A 4CH AFHDS 2A Mini Compatible Receiver
