FingerTech Beater Bar Full Kit/Assembly

FingerTech Beater Bar Full Kit/Assembly

Regular price $80.00 NZD
Regular price Sale price $80.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

The Iconic Orange FingerTech Beater Bar! These are a very well tested, and reliable weapon in competitive Beetles, and we're stocking them here in NZ for easy access!

We are seeking an alternative source for an "equivalent" part for these which may reduce import costs, unfortunately these aren't cheap to import to NZ with current foreign exchange rates, and logistics.

Destroy the competition with FingerTech's Beater Bar!  Developed and used by three #1 ranked robots (from USA, UK, and Canada), this weapon really packs a punch!

For a full set of parts to make your own champion robot, check out our 3lb Beater Bot Bundle!

Specifications:
Sized for the 3lb "Beetleweight" class.
Beater Length: 106.7mm (4.2in)
30T pulley with Delrin flanges adds 16.7mm (.657in) to length. Total 123.4mm (4.86in).
Beater Height: 50.8mm (2.0in)
Beater Thickness: 19.05mm (0.75in)
Beater Material: 6061-T6 Aluminum
Beater Weight: 149grams (5.26oz)

The bar has 4 holes each side for 5/16-18 screw "teeth".
Installed teeth add 12.7mm (0.5in) to height. Total 63.5mm (2.5in)
Max outside frame width should be 152mm (6in) or less. Frame material thickness of 9.53mm-12.7mm (0.375in-0.5in) works well.

Total assembly weight: 324grams (11.43oz)

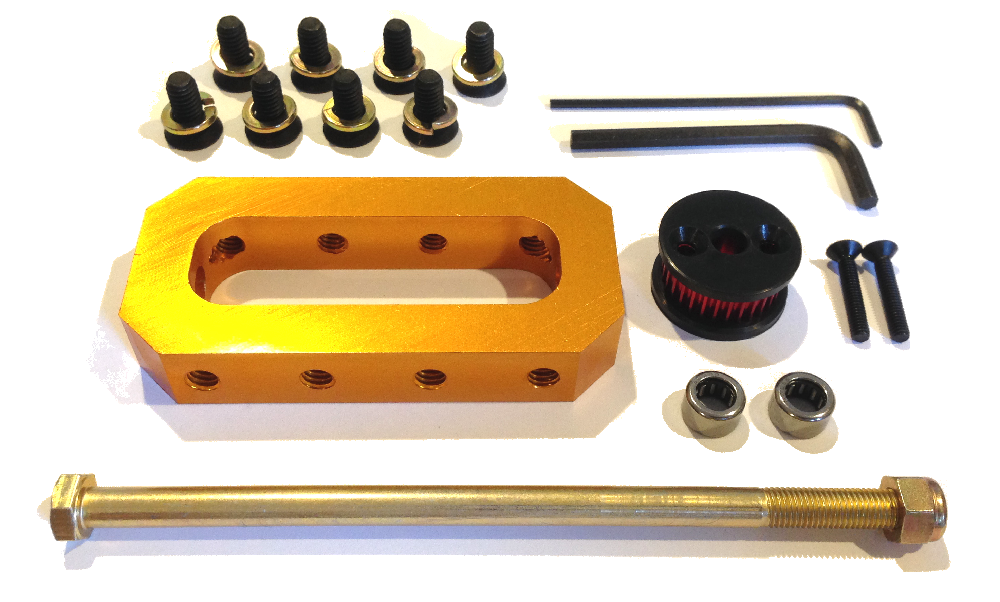

 Includes:
1 - 3lb Beater Bar
1 - 30T S3M pulley (flanged with no hub) with thick outer Delrin Flange
2 - Countersunk 8-32 x 1in screws
8 - "Teeth" 5/16-18 x 0.75in countersunk black oxide screws plus lock washers (Thread-lock is recommended.)
1 - 5/16-24 x 6.5in Gr8 Hex bolt and Nylock Nut "dead shaft"
2 - SCE55 5/16in roller bearings
1 - 3/32 hex wrench for installing pulley
1 - 3/16 hex wrench for installing teeth
