Power LED V1.0

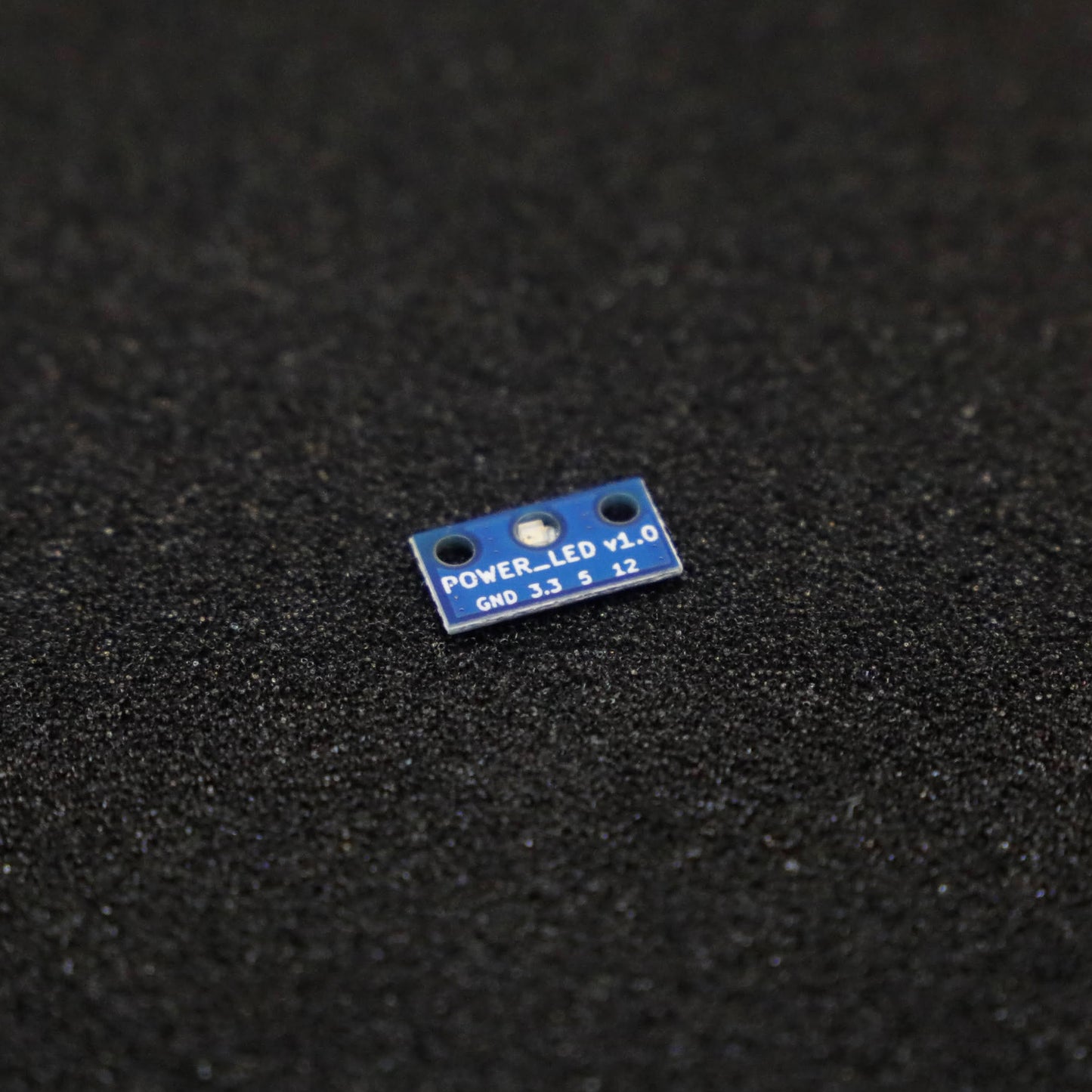

POWER LED is a unique take on the traditional LED power-indicator design: originally designed for combat robotics, but it's ideal for any application requiring a small easy-to-use panel mount LED.

Designed and built in Christchurch, New Zealand by Connor Benton, visit cb-technology for details.

Github Repo: https://github.com/cb-repo/P003-POWER_LED

FEATURES

• Multiple voltage input options to suit most applications.
• Small form-factor and low-profile design allow the LED to be tucked into tighter areas that simmilar products

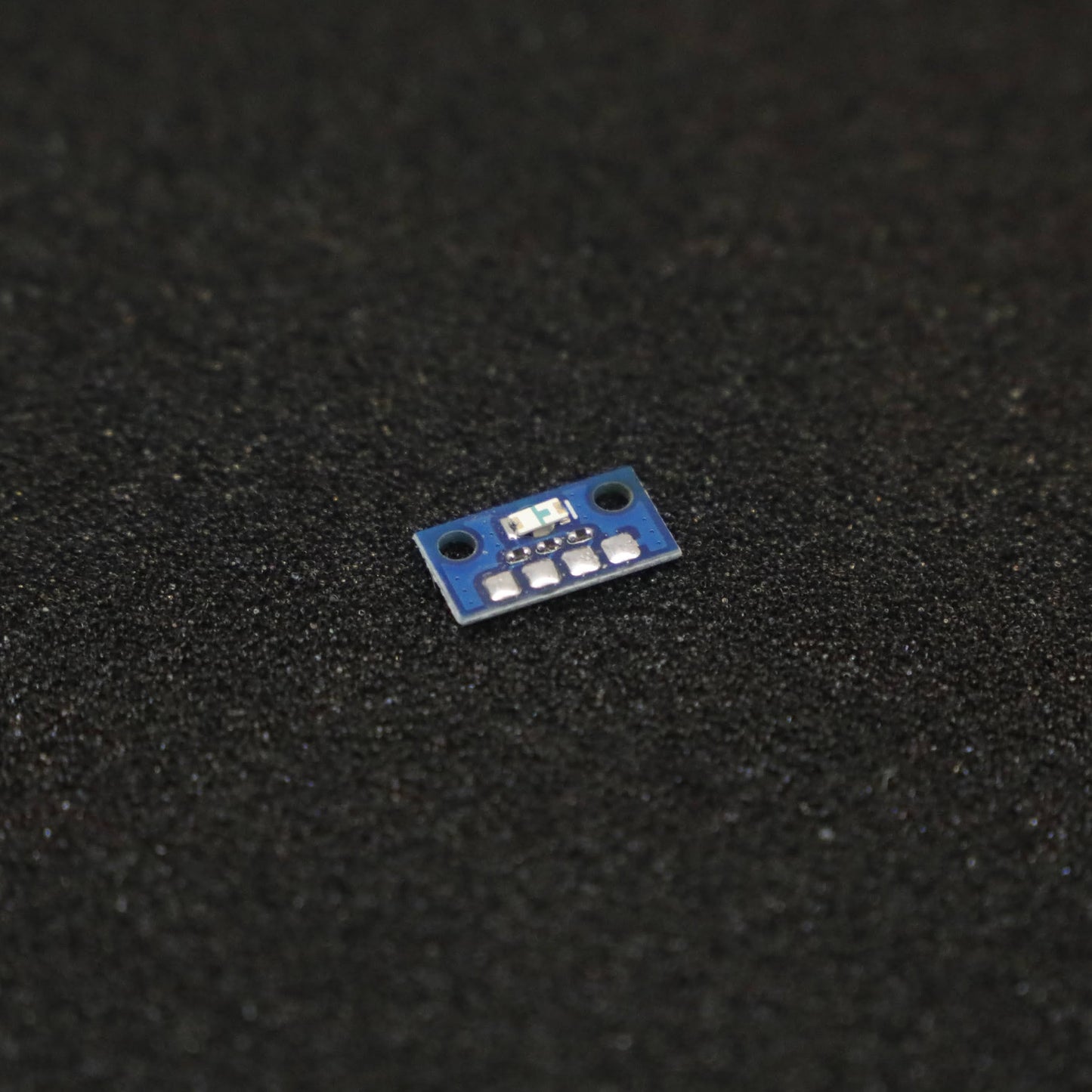

• Reverse-mount LED allows for flush and secure mounting in high impact environments.
• Red LED colour chosen for its visibility.

SPECIFICATIONS

• Dimensions: 14.0x7.5x1.3 mm
• Weight: 0.2g excluding wires or mounting fasteners
• Input Voltage: 3V3, 5V, and 12V options
• Current Consumption: 10mA max
• Mounting Fasteners: M2

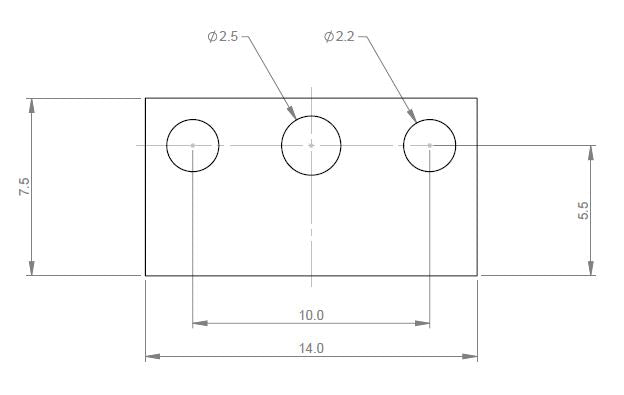

MOUNTING HOLE PATTERN

Note: If you do not have an appropriate drill-bit for the two mounting holes, a standard 2[mm] will also work.
