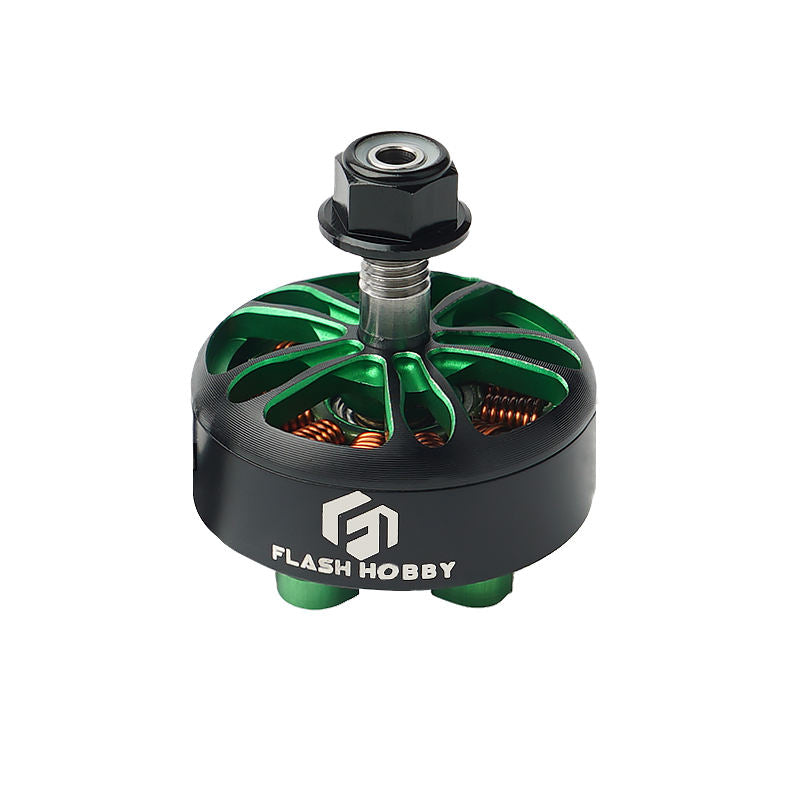

Brushless Outrunner DC Motor 2306.5 - Beetle Weapon Motor

Brushless Outrunner DC Motor 2306.5 - Beetle Weapon Motor

Regular price $35.00 NZD
Regular price Sale price $35.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

This weapon motor is a nice fit, good weight, tons of power, nice compact size. We selected this as it's a convenient and easy to mount up weapon motor solution. The M5 threaded shaft can work with 5mm bore pulleys/gears with set screw, as well as clamp down with a nut onto any 5mm bore load (think 3D printed pulleys?)

Combined with the common Inrunner motors used in the Fingertech kits (which we are also planning to stock) this provides a nice selection of options to power your weapon systems with!

Specs:

Speed 1900kv
Rated Voltage 3S - 6S (10-24V)
No Load Current 1.2A
Max Continuous Rated Current 50A
Rated Max Power 1,190W

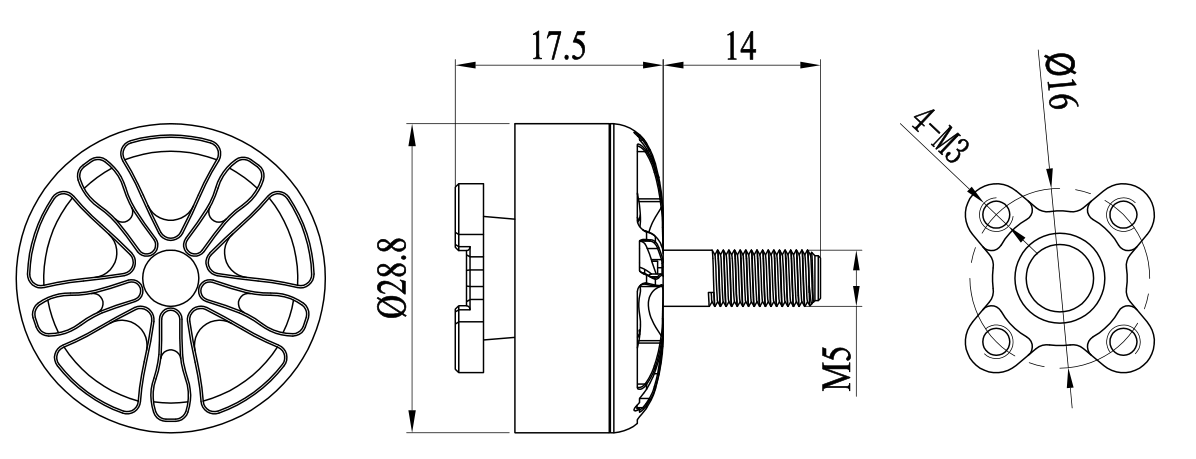

Shaft Diameter 5mm (threaded M5)
Shaft Length 14mm
Mounting Hole Spacing 16mm
Mounting Hole Size M3
Total Weight 36.6g
