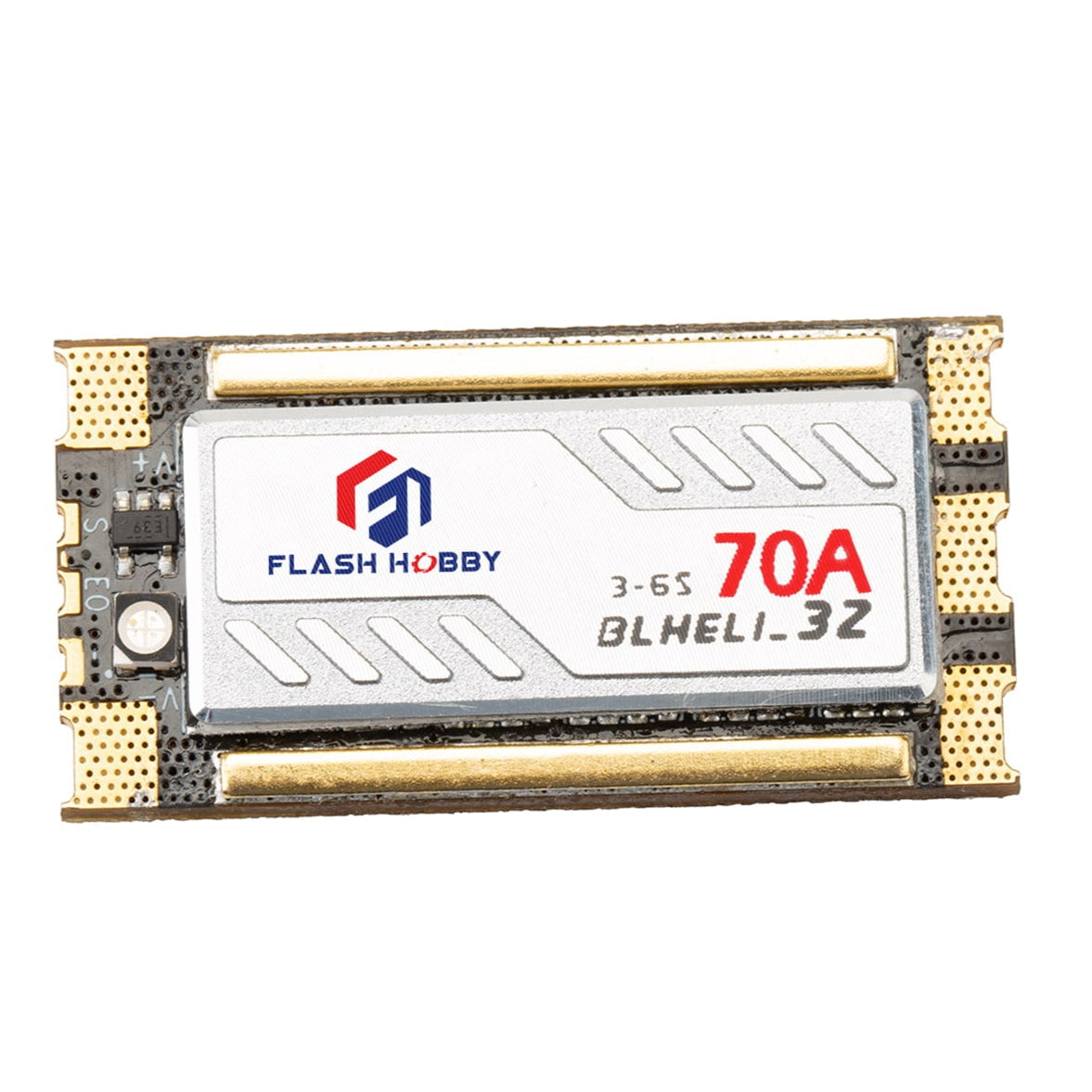

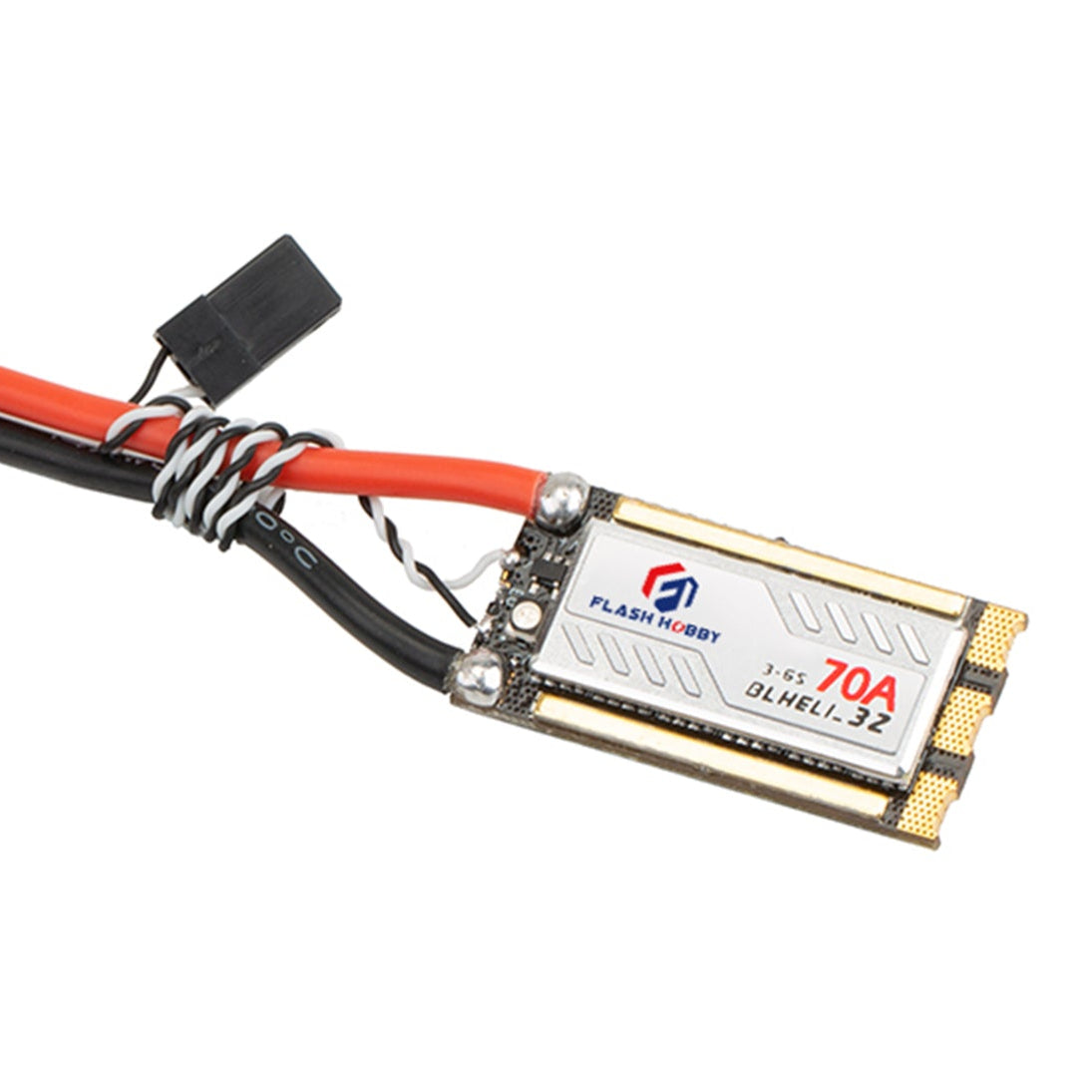

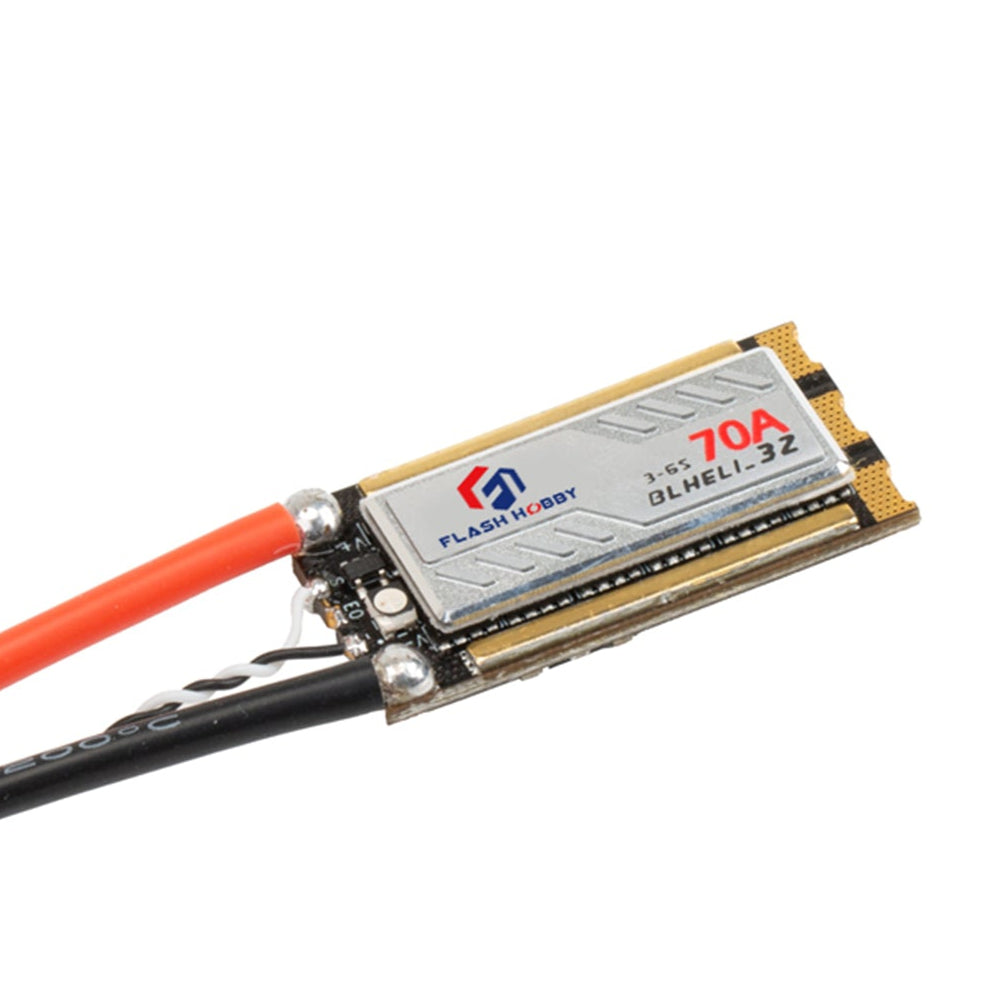

70A Brushless BLHeli_32 Weapon/Drive ESC
70A Brushless BLHeli_32 Weapon/Drive ESC
Couldn't load pickup availability
This excellent ESC for running Heavy/High-Power Beetle Weapons, or for Feather Drives is running a modern firmware (BLHeli_32)
BLHeli_32 firmware allows for some great features, such as Current and Thermal protection, as well as allowing communication to the receiver via PWM, or via SBUS (for lighter smaller receivers and less wires).
Also these ESCs support returning telemetry information about voltage, current, temperature, RPM, etc from the motor (provided you have a receiver capable of it, and it is wired correctly).
These were chosen specifically due to their high current capacity, coupled with small lightweight packages with no frills.
It's relatively easy to reprogram these using an Arduino or similar to make your own USB Flasher, but we also stock actual BLHeli USB Flasher devices for these as well to make reprogramming them simple.
Specs:
Continuous Current
|
70A
|
Burst Current (>10s)
|
75A
|
Input NiMH NiCd
|
N/A
|
Input Lipo
|
3-6S
|
BEC
|
NO
|
Size(mm)
|
21mm x 42mm
|
Weight
|
10g
|
