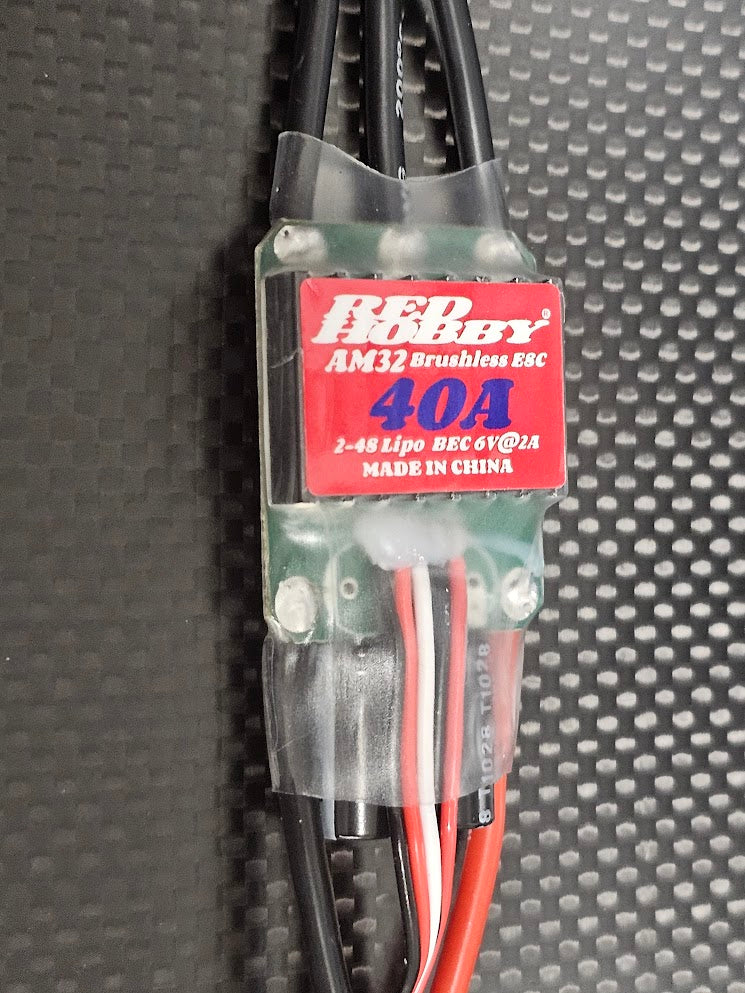

40A RedHobby AM32 Brushless ESC
40A RedHobby AM32 Brushless ESC
Couldn't load pickup availability
Dominate the arena with the RedHobby 40A Brushless ESC, now factory-flashed with the industry-leading AM32 firmware. While these units are based on the legendary RedBrick architecture known for its "tank-like" build quality, this RedHobby edition elevates the hardware to a professional performance bracket. By integrating cutting-edge firmware with battle-proven circuitry, these ESCs offer the precision and torque necessary for the most demanding competitive environments.
Superior Control with AM32 Firmware
The shift to AM32 represents a massive leap in low-RPM management. Unlike older firmware standards, AM32 provides an exceptionally smooth and powerful startup behavior—critical when you need to spin up a heavy kinetic weapon or maintain traction during a grueling pushing match. This improved torque delivery ensures that your bot reacts instantly to transmitter inputs, giving you the edge in maneuverability and engagement.
Battle-Ready Hardware

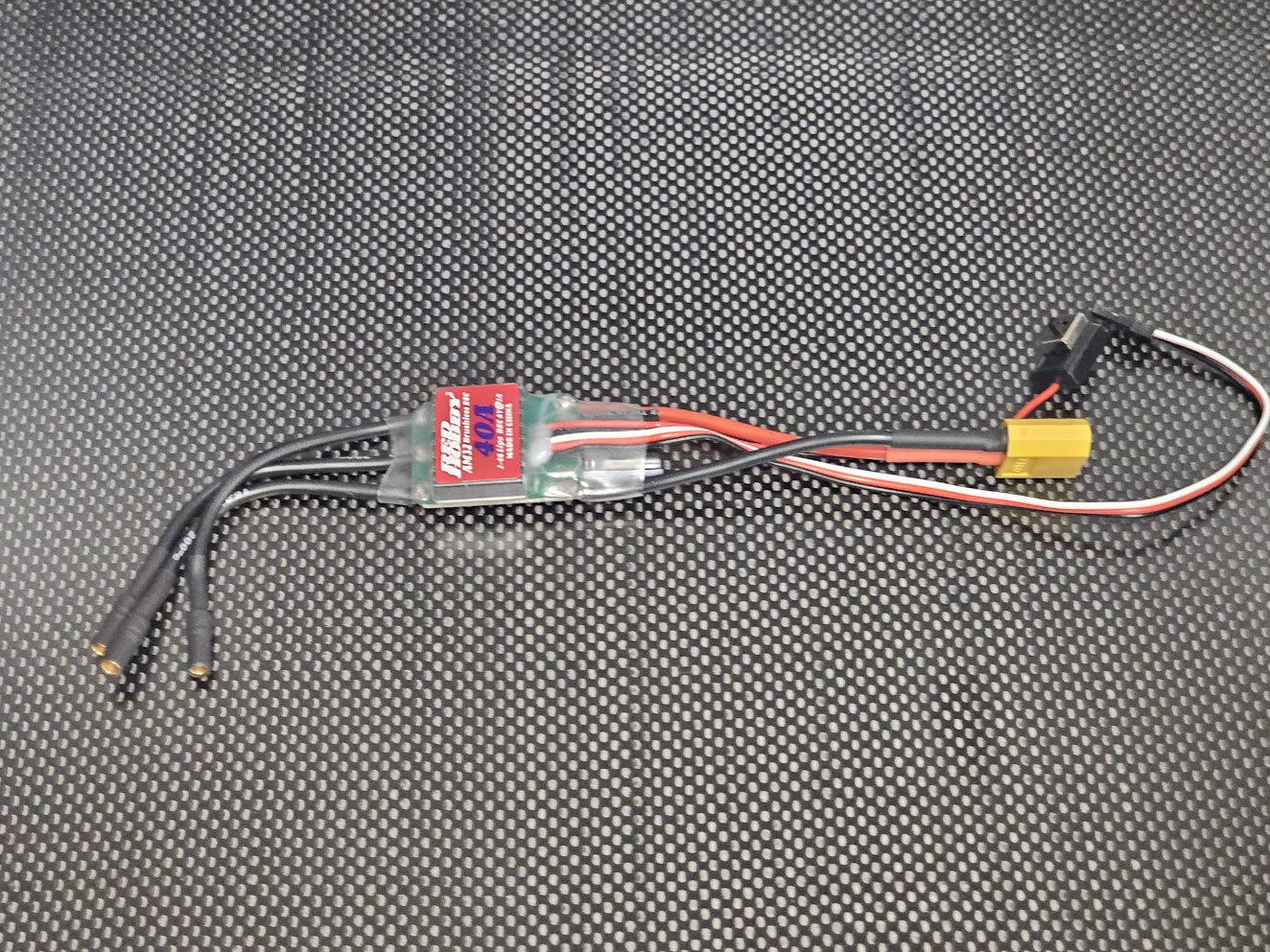

Every RedHobby 40A is designed to survive the chaos of the box. It features a robust 6V/2A BEC to reliably power your receiver and servos, eliminating the need for a secondary power source. To get you into the fight faster, these units come pre-soldered with XT-60 connectors and high-quality power leads, plus an integrated power switch for safe and easy activation.
Technical Specifications
| Feature | Specification |
| Brand | RedHobby (RedBrick Based) |
| Firmware | AM32 (Optimized for Combat) |
| Continuous Current | 40A |
| Burst Current | 50A |
| Voltage Range | 2S - 4S LiPo |
| BEC Output | 6V / 2A |
| Weight | 28g |
| Dimensions | 46mm x 26mm x 8mm |
| Input Connector | XT-60 (Pre-soldered) |
Why Choose the AM32 RedHobby?
-
High-Torque Startup: Optimized for heavy spinning weapons or high-reduction drive setups.
-
Proven Durability: Built on the rugged architecture trusted by combat roboticists for heat dissipation.
-
Plug-and-Play Convenience: Pre-soldered leads and a physical power switch simplify your internal wiring.
-
Smooth Sine-Wave Modulation: Provides quieter operation and more efficient power delivery than standard ESCs. (Note: Sine wave mode will generate much more heat in the ESC and Motors!)
Whether you are building a featherweight wedge or a beetleweight high-energy spinner, the RedHobby 40A AM32 delivers the reliability of a classic with the cutting-edge performance of modern firmware. Stay in the fight longer and hit harder with the ESC built for combat.
For help programming AM32, please see our AM32 guide here:
