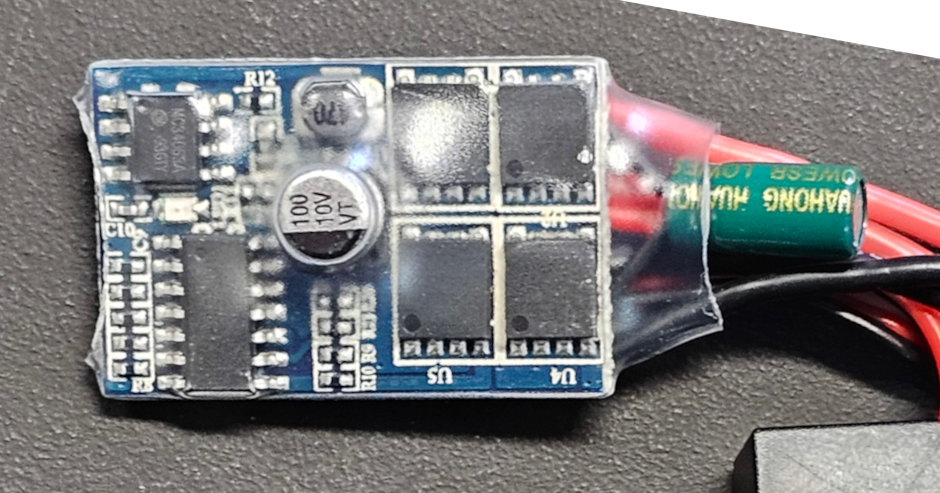

30A Brushed ESC with Forward/Reverse

A great budget ESC for running Antweight and 3lb Beetleweight Bots.

Two are needed to create tank drive, using one each side.

To reduce weight we recommend removing the switch, shorting it with solder across the pcb points. Keep and use the switch as a power switch. You can also reduce the length of all cables as needed within your bots dimensions.

Specifications:
Current(A):30A
BEC :5V 1A
No Brake
Input signal :PPM
Driver frequency:2KHz
Li-Po :2S
Ni-Mh/Ni-cd :4-7cell
Constant current 30A Max
Net Weight: 10g

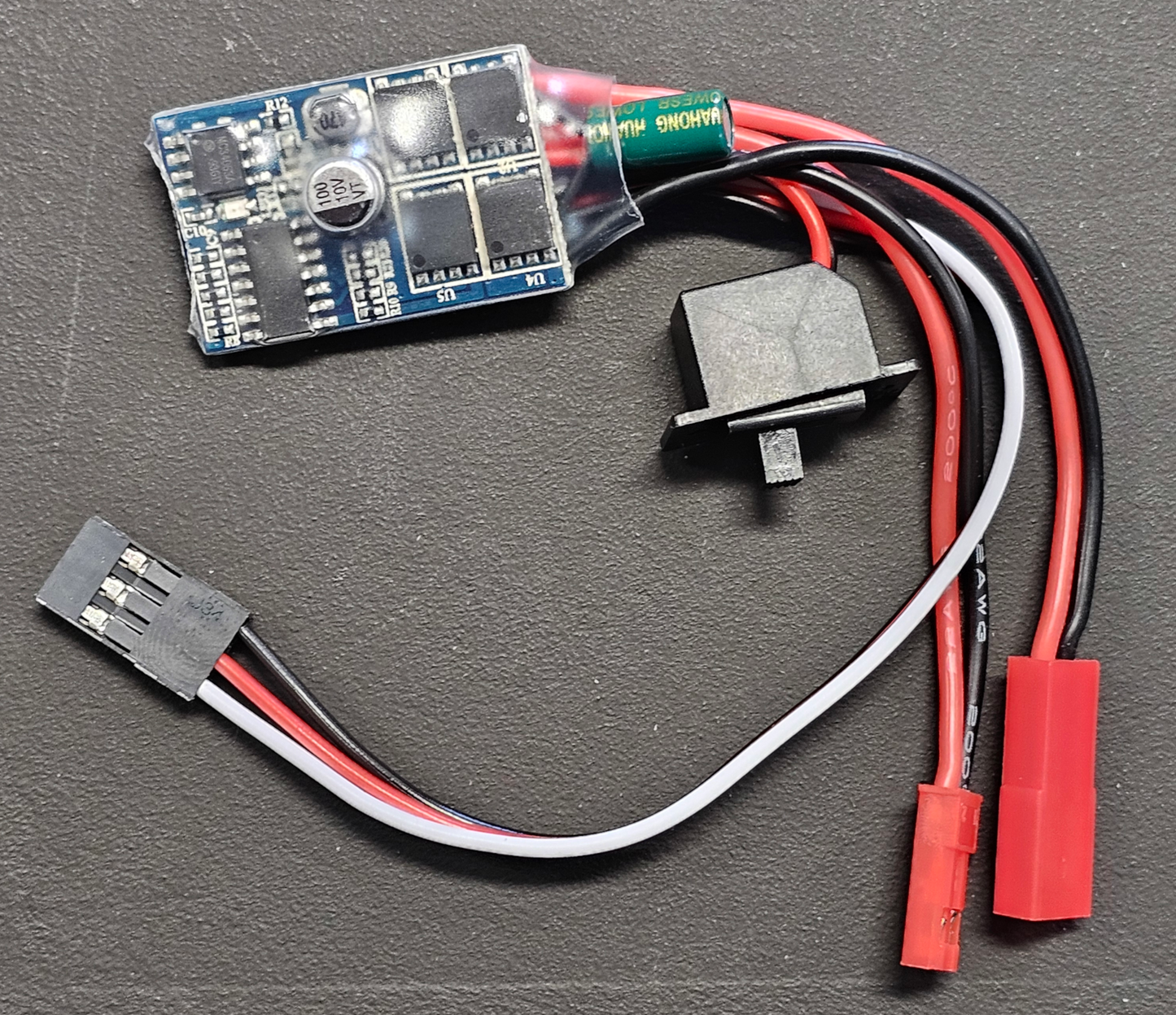

Connections include.
1 x servo plug.
2 x jst plugs (1 for battery, one for motor)

Package Includes:
1 x 30A Forward/Reverse ESC Brushed Speed Controller
