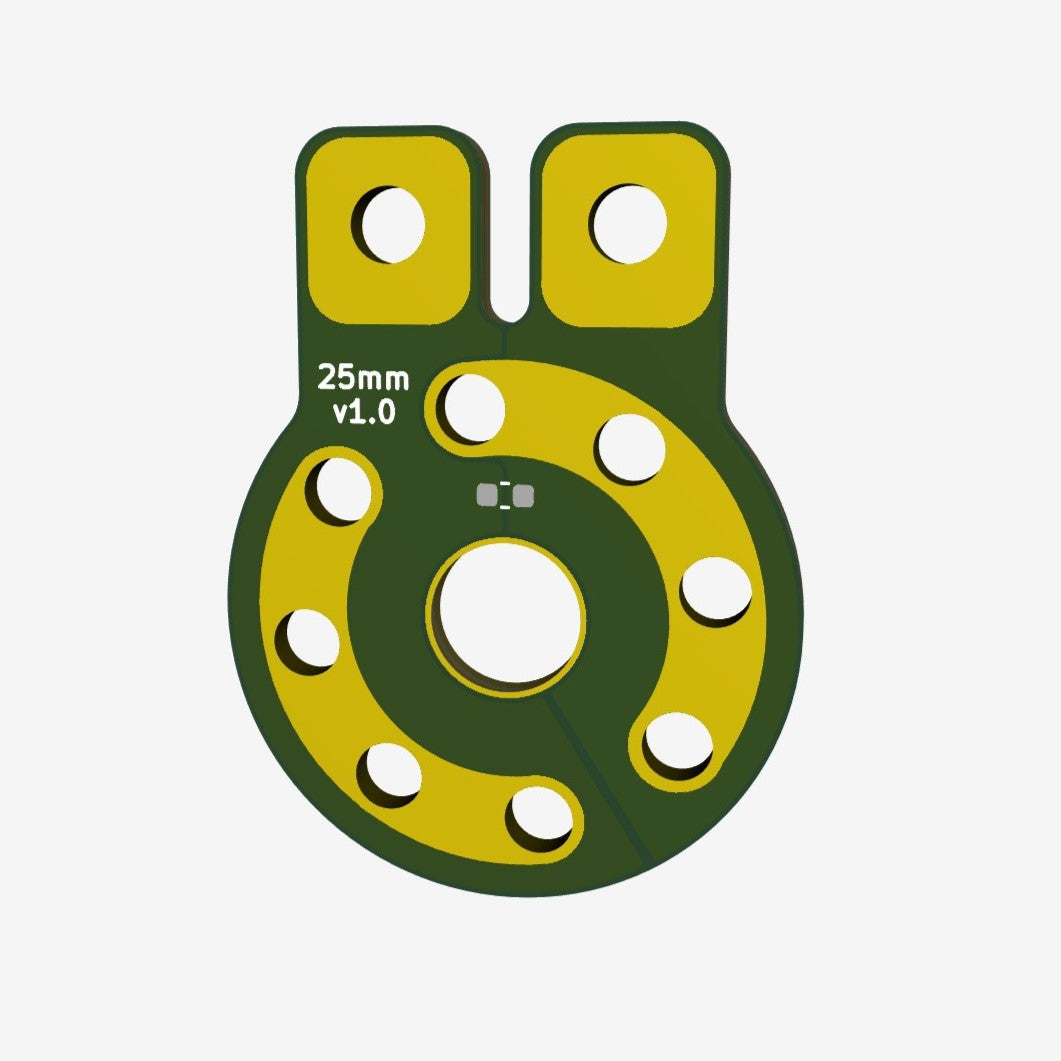

25mm Motor Terminal Breakout V1.0 (2 pack)

25mm Motor Terminal Breakout V1.0 (2 pack)

Regular price $10.00 NZD
Regular price Sale price $10.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

Motor terminals are traditionally small and flimsy, making it hard to guarantee a reliable solder connection. MOTOR TERMINAL BREAKOUTS are designed to simplify and strengthen these solder joints, enabling more reliable operation especally in high vibration environments: orignially designed for combat robotics but is suitable for any application using these motors.

This is a New Zealand based product by cb-technology, Connor Benton.

FEATURES

  • Mounts to the motor at 0°, 45°, 90°, and 135° angles.
  • Large pads with holes to enable stronger connections to the wires.
  • Pads are broken out onto PCB fingers allowing the wires to be heatshrunk post soldering (providing even greater mechanical strength).
  • 100nF capacitor across the motor output to filter noise and voltage spikes.

SPECIFICATIONS

  • Dimensions: 25x33x1.6 mm
  • Weight: 1g each
  • Material: Fiberglass (FR4)
  • Mounting Pad Center: 18mm
  • Terminal Hole Size: ⌀3mm
  • Included in Package: 2x Motor Terminal Breakouts
