22mm Motor Faceplate Mount V1.0 (2 Pack)

22mm Motor Faceplate Mount V1.0 (2 Pack)

Regular price $10.00 NZD
Regular price Sale price $10.00 NZD
Sale Stock Coming Soon!
Shipping calculated at checkout.
Angle
NOTIFY ME WHEN IN STOCK

22mm MOTOR FACEPLATE MOUNT v1.0 (2-pack)

Each faceplate is designed to easily and rigidly panel mount a single 22 motor to your desired chassis using the 4x M3 PEMs on each corner. This product was orignially designed for beetle weight combat robotics but is suitable as a sustitute mount for any application using these motors.

This is a New Zealand product developed by cb-technology, Connor Benton.

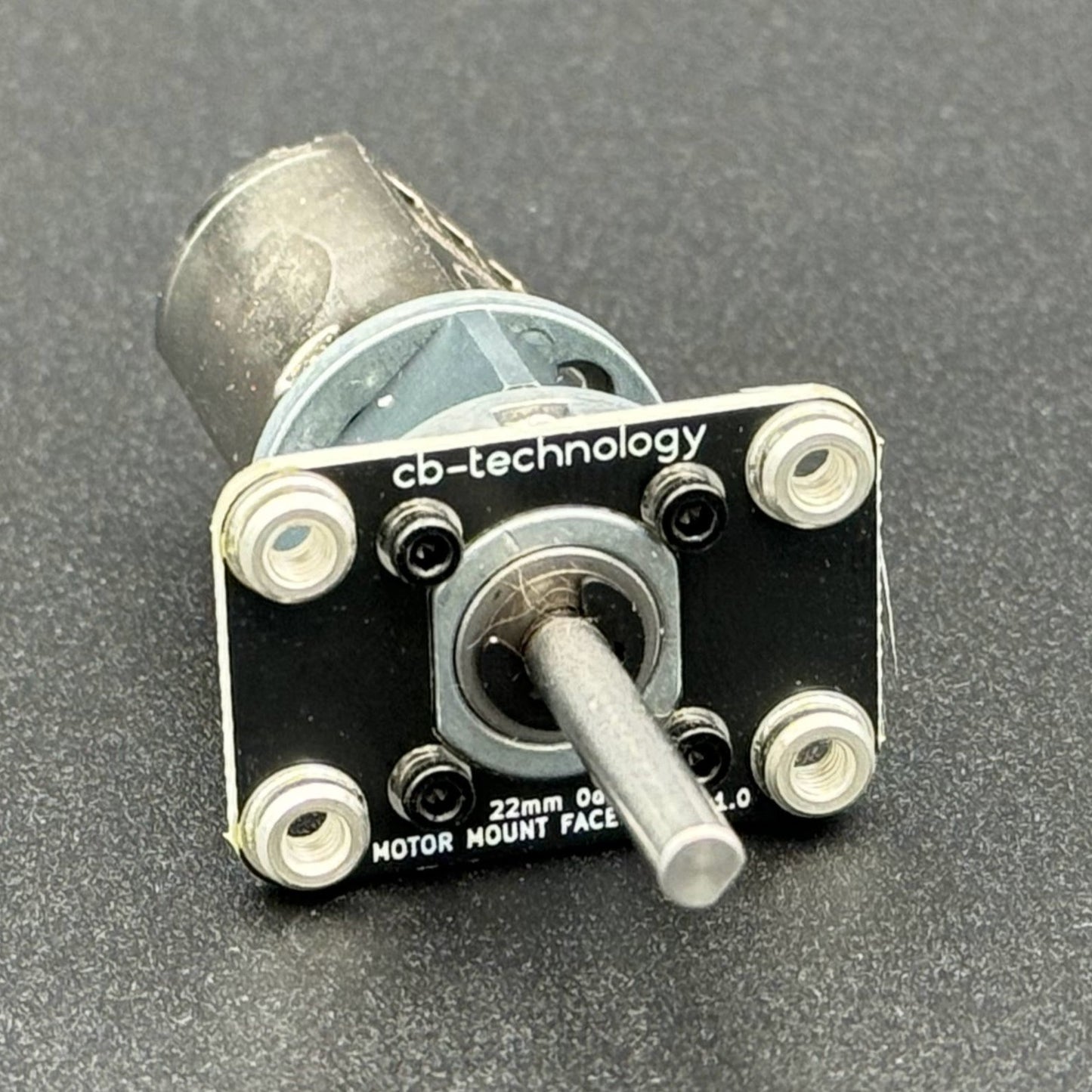

Variant: 0degree

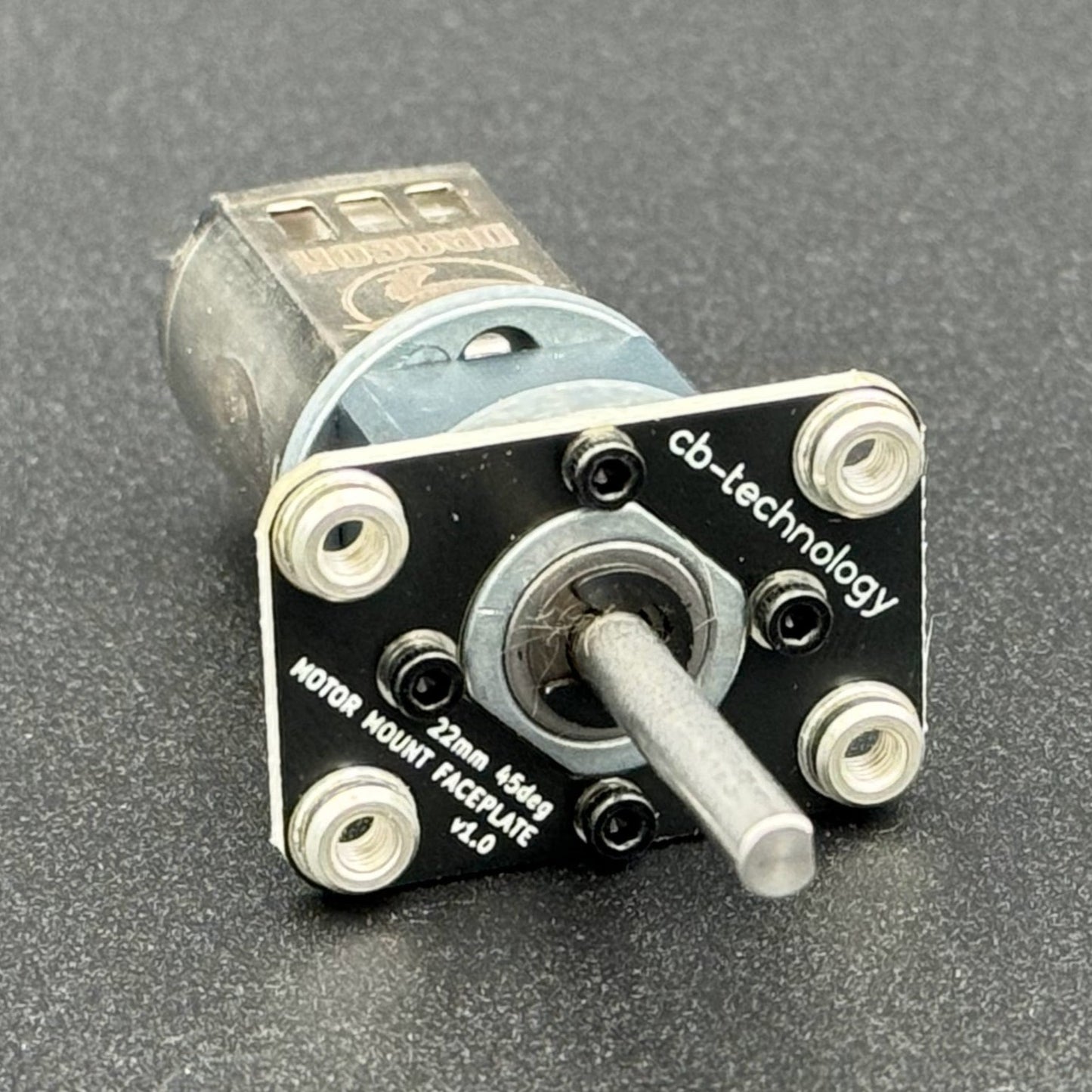

Variant: 45degree

FEATURES

  • Easy and rigid way to panel mount standard 22 motors.
  • Faceplace is constructed from fiberglass so is very rigid while minimising weight.

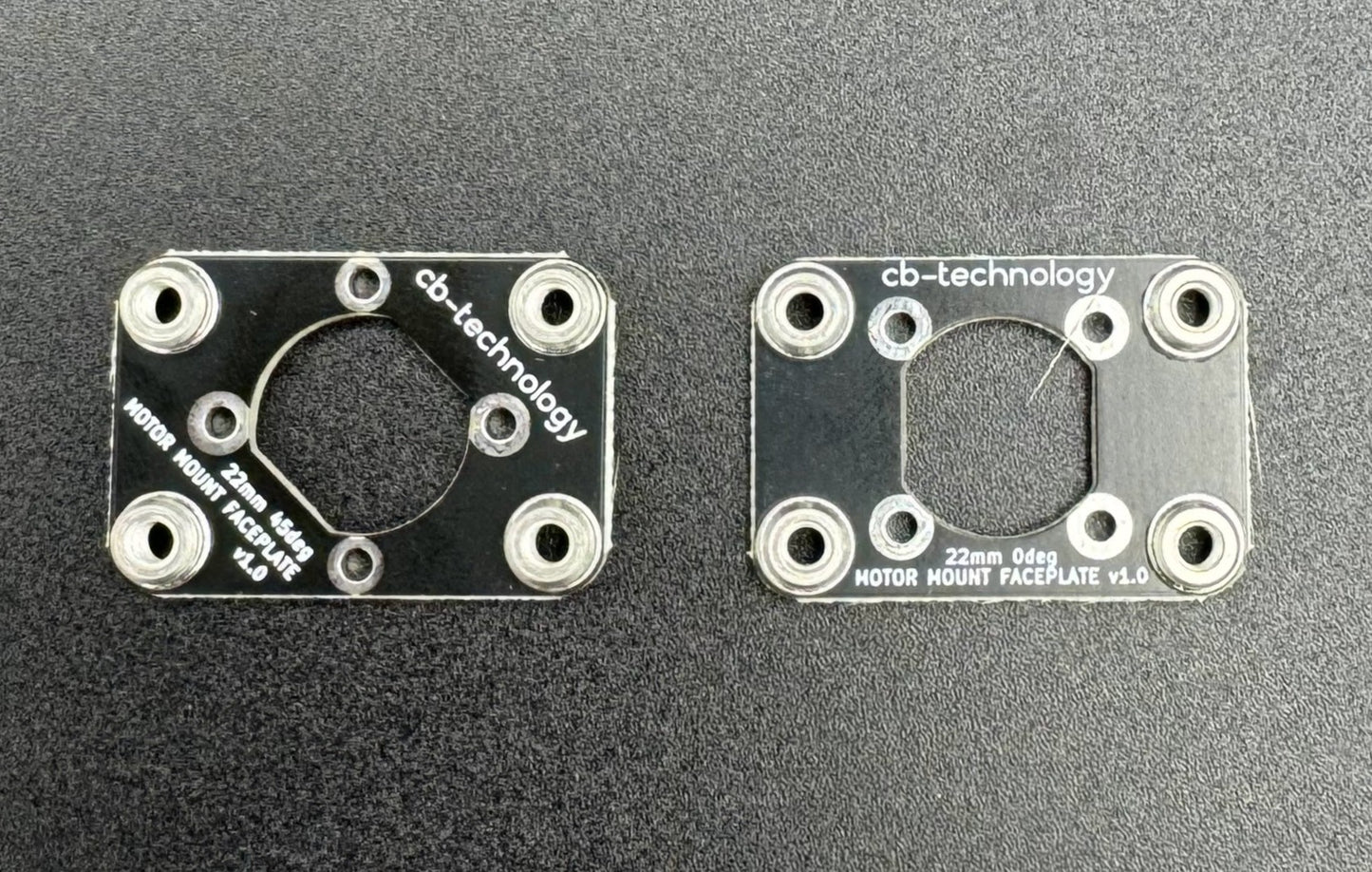

  • Choose either the 0degree OR 45degree variants to match your specific 22mm motors
  • Includes 4x M3 PEM soldered to each corner, elmininating the need for individual nuts and simplifying the installation process

SPECIFICATIONS

  • Dimensions (Product): 32 x 22 x 3.6mm
  • Dimensions (Hole Centers): 25 x 15mm
  • Weight: 3g each
  • Material: FR4 (Fiberglass)
  • Included in Package: 2x Faceplates, 4x M2x4 cap head screws
