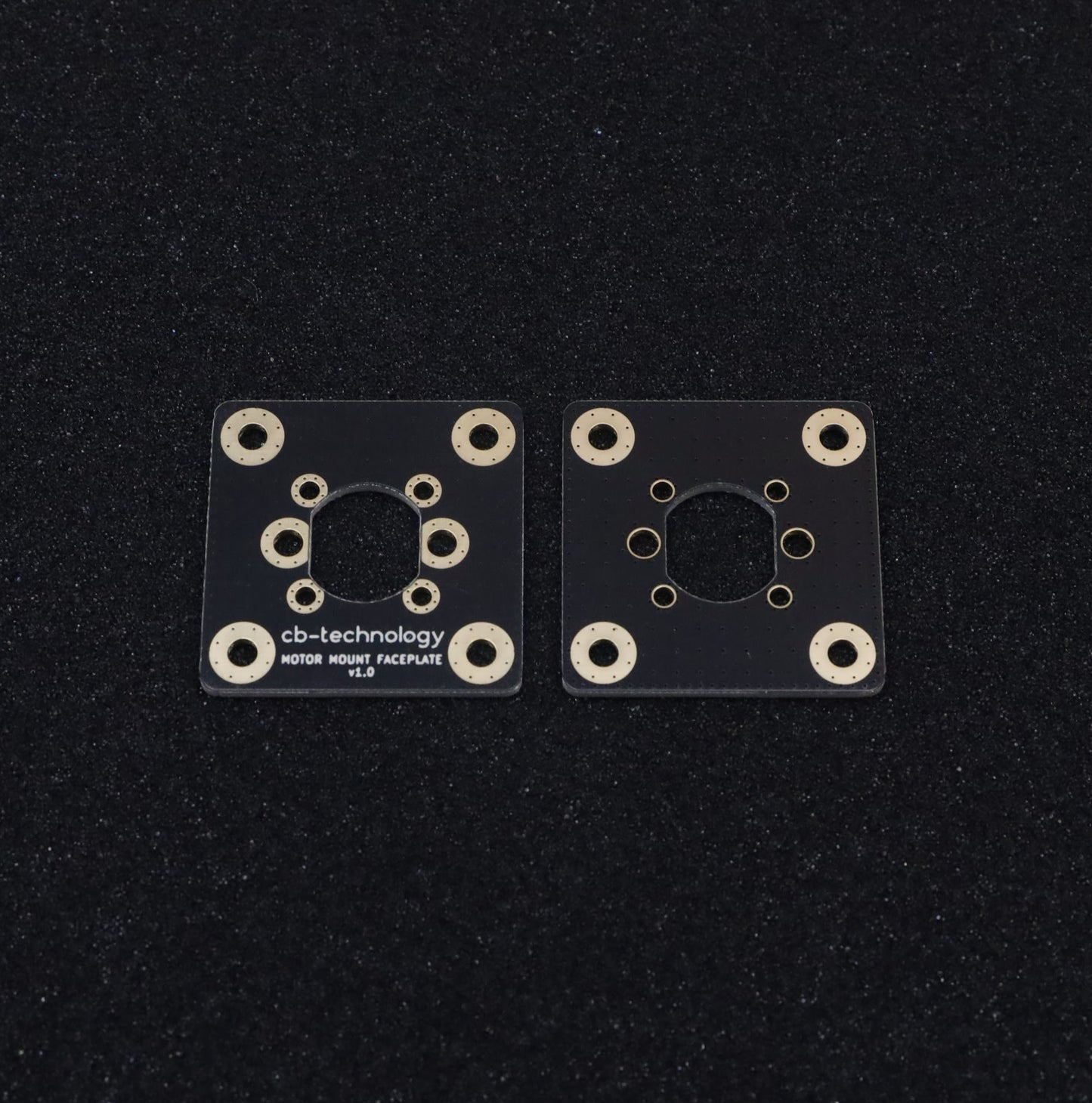

22/25mm Motor Faceplate Mount V1.0 (2 pack)

Each FACEPLATE is designed to easily and rigidly panel mount a single 22 or 25mm motor to your desired chassis. This product was orignially designed for beetle weight combat robotics but is suitable as a sustitute mount for any application using these motors.

This is a New Zealand based product by cb-technology, Connor Benton.

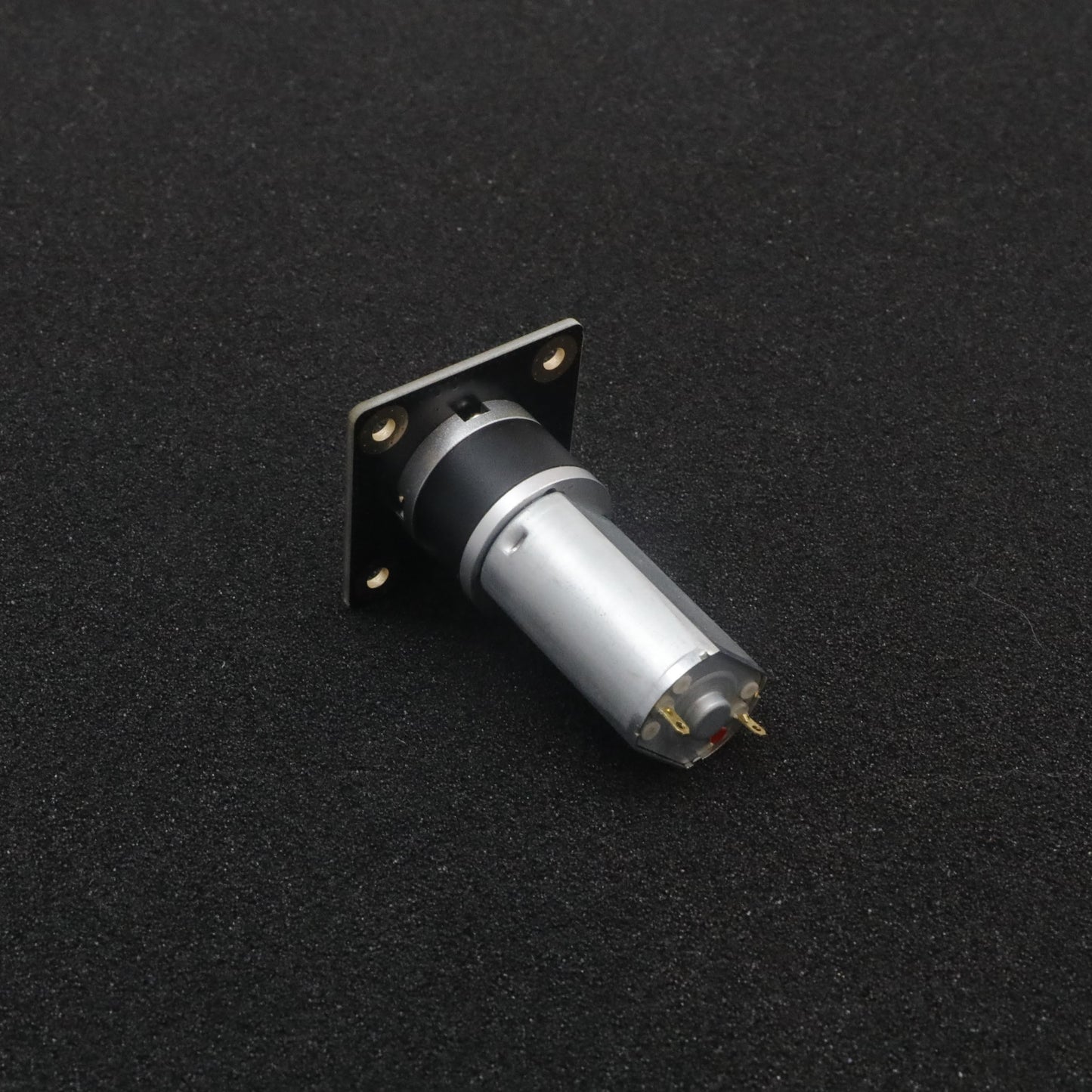

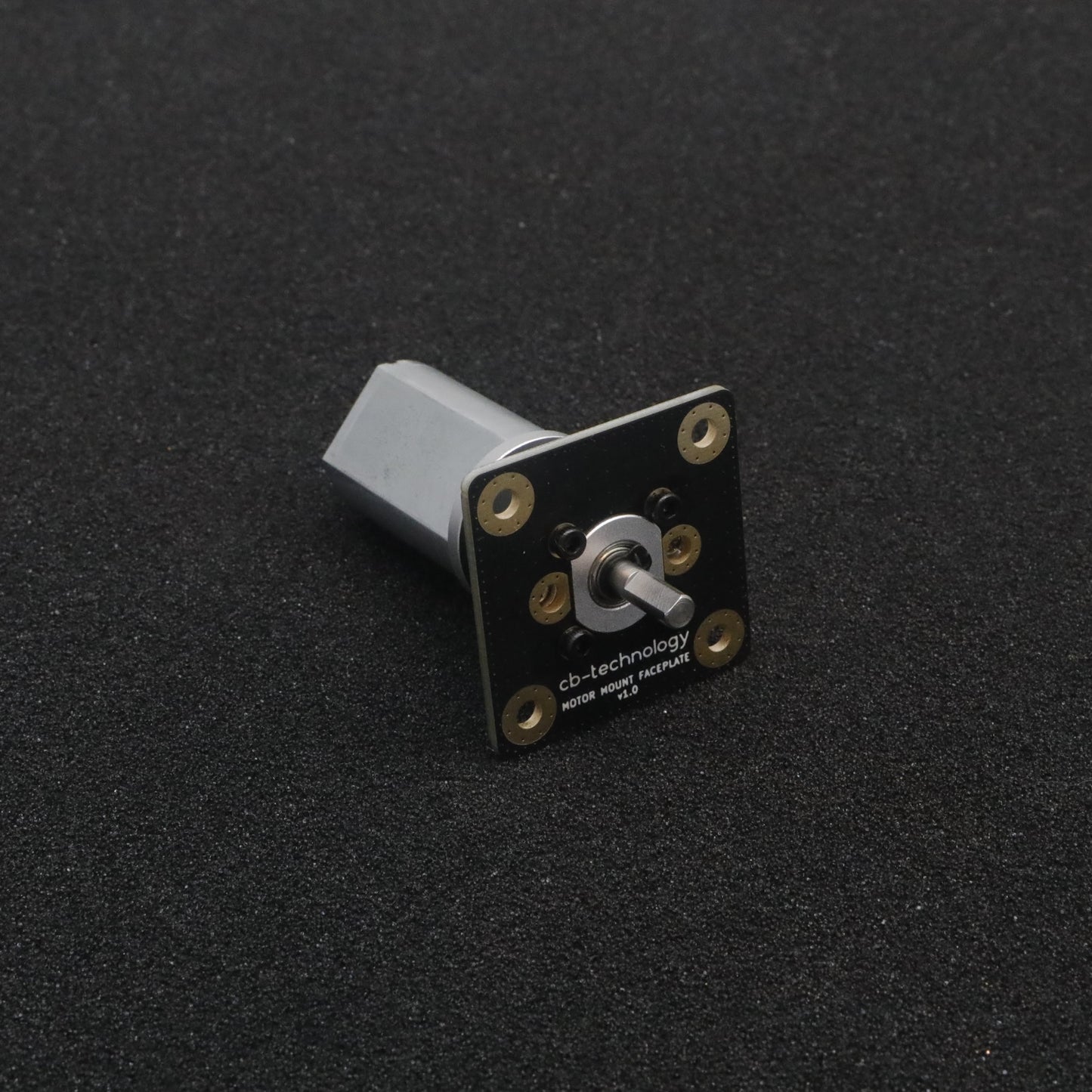

22mm MOTOR

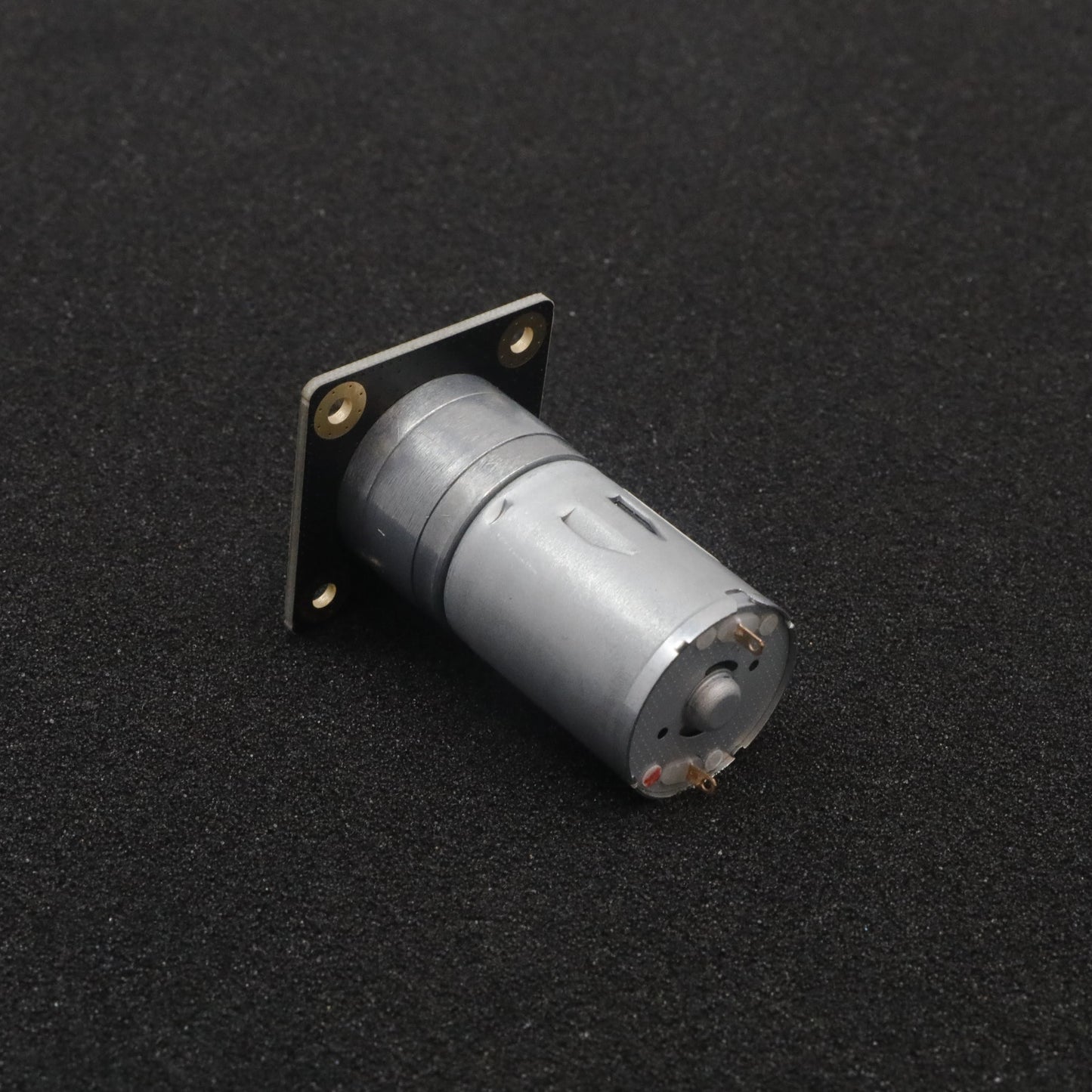

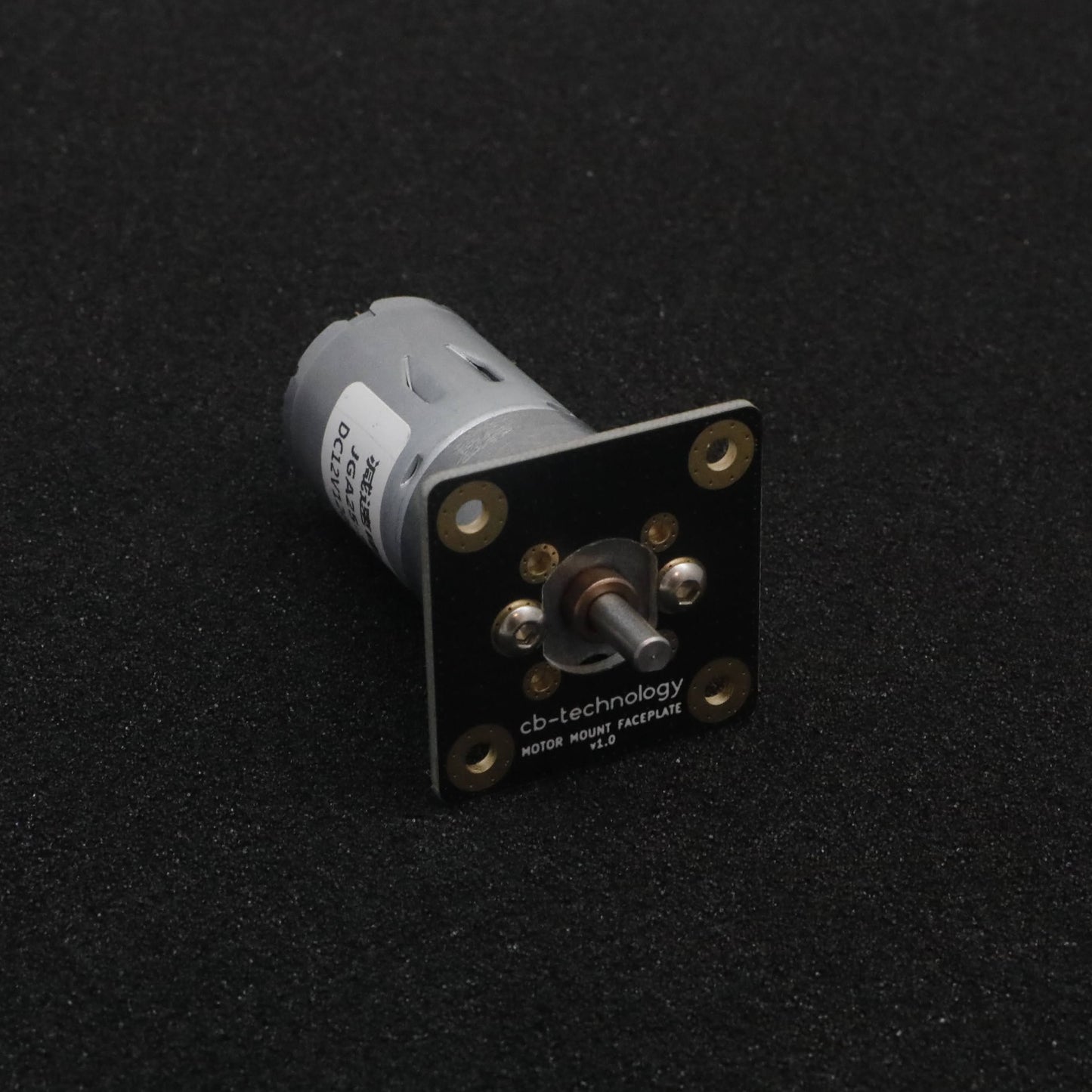

25mm MOTOR

FEATURES

• Easy and rigid way to panel mount standard 22 and 25mm motors.
• Faceplace is constructed from fiberglass so is very rigid while minimising weight.

SPECIFICATIONS

• Dimensions: 35x35x1.6 mm
• Weight: 3.5g each
• Material: FR4 (Fiberglass)
• Included in Package: 2x Faceplates, 8x M3x12 Button Head Screws + Nuts.

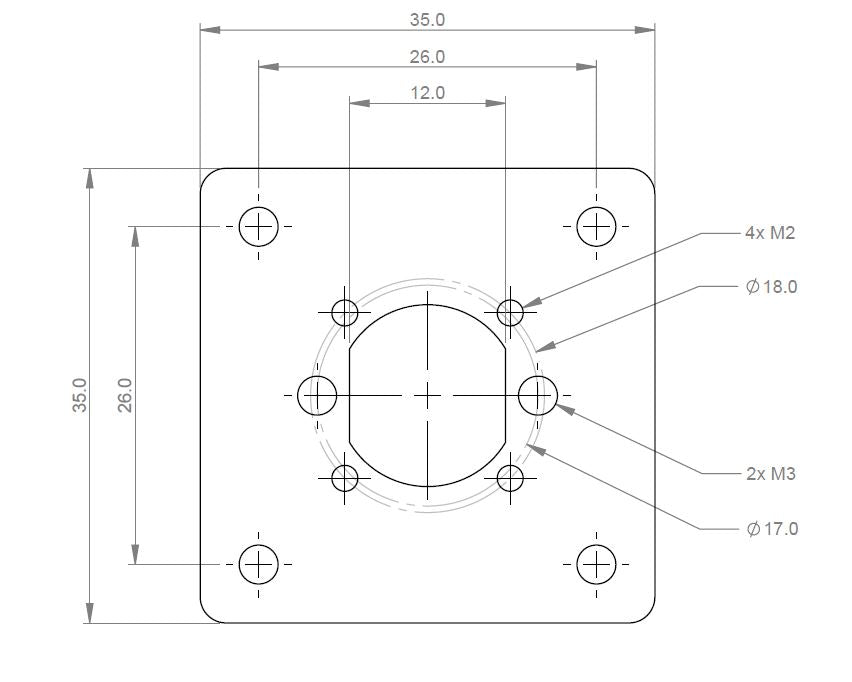

FACEPLATE INSTALL PATTERN
